Description
Brand - ZEN
Item Number - 6309-C3 ZEN
Category - Deep Groove Ball Bearing (Metric Series)
Edge Type - Standard

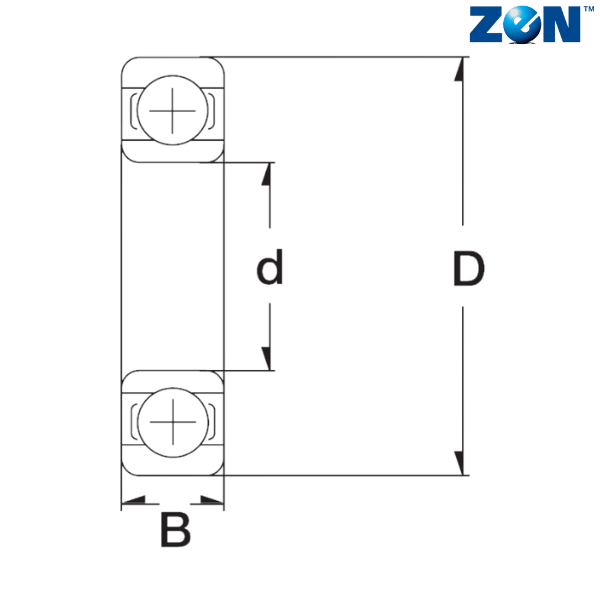

Inner Ring Dimension (d) mm - 45
Outer Ring Dimension (D) mm - 100
Width (B) mm - 25
Dynamic Load Rating (N) - 53000
Static Load Rating (N) - 32000
Limiting Speed (Grease) - 6.7
Weight (kg) - 0.829
Radial Play - 0.018- 0.036
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
** Images are for representation purposes only
