Description
Brand - BECO

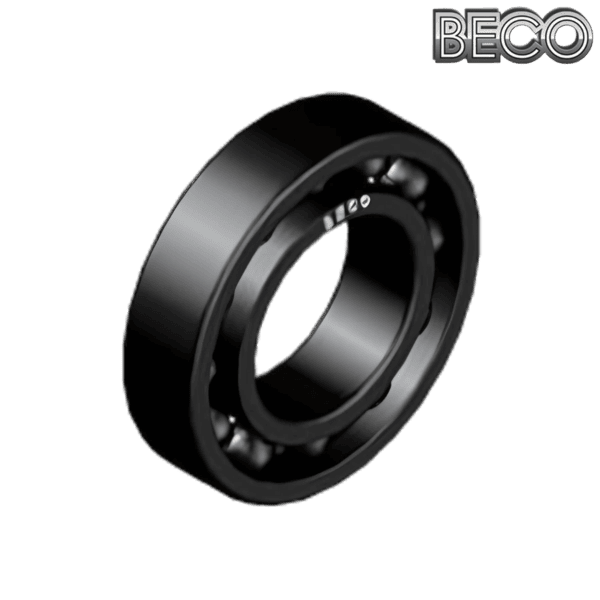

Item Number - 6309 BHTS 330° BECO
Category - Ball Bearings for Extreme Temperature (Only for Automatic Lubrication)

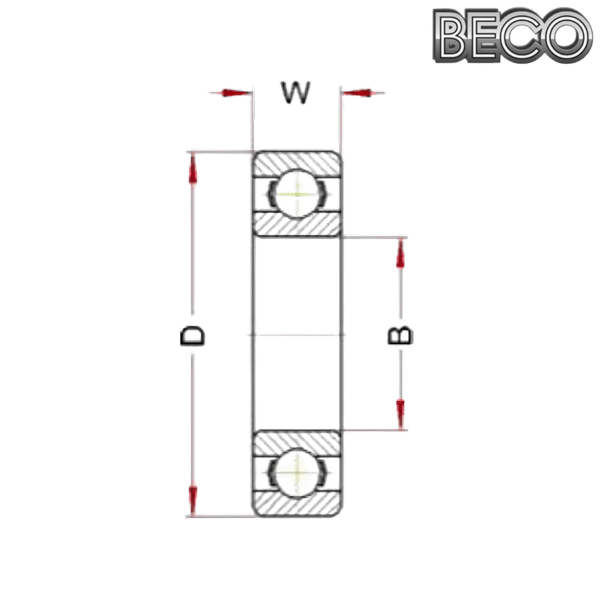

Bore Diameter (B) mm - 45
Outer Diameter (D) mm - 100
Width (W) mm - 25
Weight (kg) - 0.83
Limiting Speed (RPM) - 67
Static Load at 330°C (kN) - 22.06
Static Load at 20°C (kN) - 32

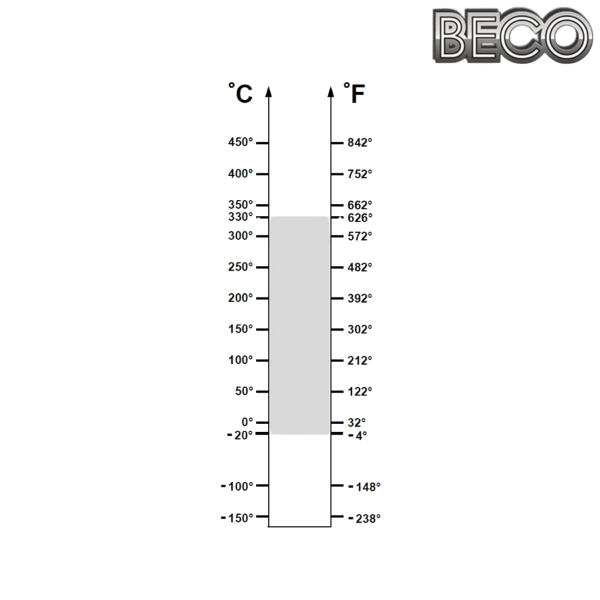

Operating Range - ‒20° / 330°C
Economic Operating Range - 200° / 330°C
NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result.
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
