Description
Brand - FAG
Item Number - 6306-C FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 30
Outer Diameter (D) mm - 72
Width (B) mm - 19
Basic Dynamic Load Rating (Cr) N - 32000
Basic Static Load Rating (C0r) N - 16200
Fatigue Limit Load (Cur) N - 1120
Limiting Speed (nG) min–1 - 15100
Speed Rating (nϑr) min–1 - 11500
Calculation Factor (f0) - 13
Weight (m) kg - 0.328
Minimum Chamfer Dimension (r min) mm - 1.1
Caliber Diameter Outer Ring (D2) mm - 63.29
Caliber Diameter Inner Ring (d2) mm - 41.44

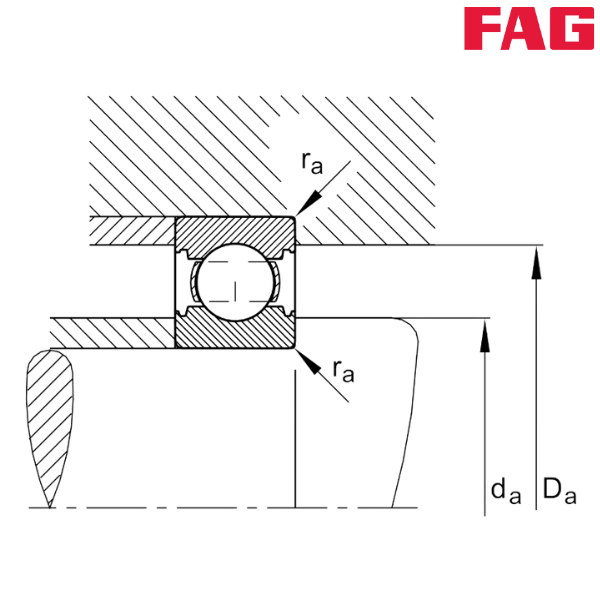

Minimum Diameter Shaft Shoulder (da) mm - 37
Maximum Diameter of Housing Shoulder (Da) mm - 65
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
** Images are for representation purposes only
