Description
Brand - BECO
Item Number - 6306 BHTS 2RS VT 250°-280° BECO
Category - Ball Bearings for Extreme Temperature
Bore Diameter (B) mm - 30
Outer Diameter (D) mm - 72
Width (W) mm - 19
Weight (kg) - 0.35
Limiting Speed (RPM) - 760
Static Load at 280°C (kN) - 11.64
Static Load at 20°C (kN) - 16.3

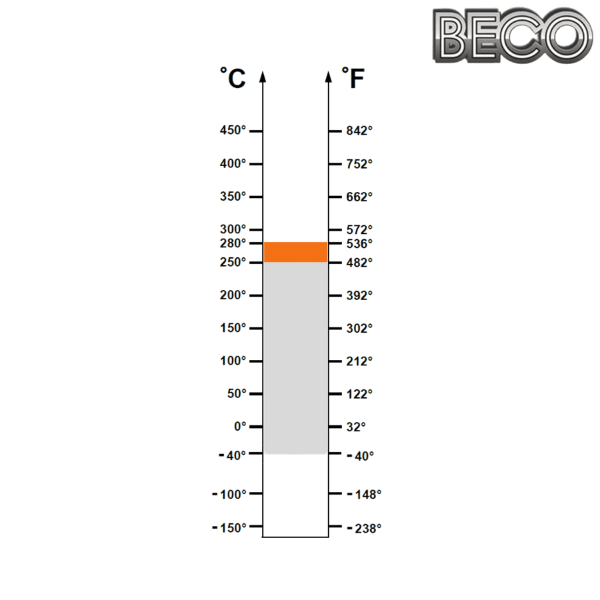

Operating Range - ‒40°/250°C
Economic Operating Range - 180°/250°C
Short-Time Operating Range - 250°/280°C
NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result.
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
** Images are for representation purposes only
