Description
Brand - BECO
Item Number - 6301 BHTS ZZ 280° BECO
Category - Ball Bearings for Extreme Temperature
Bore Diameter (B) mm - 12
Outer Diameter (D) mm - 37
Width (W) mm - 12
Weight (kg) - 0.06
Limiting Speed (RPM) - 1600
Static Load at 280°C (kN) - 2.96
Static Load at 20°C (kN) - 4.15

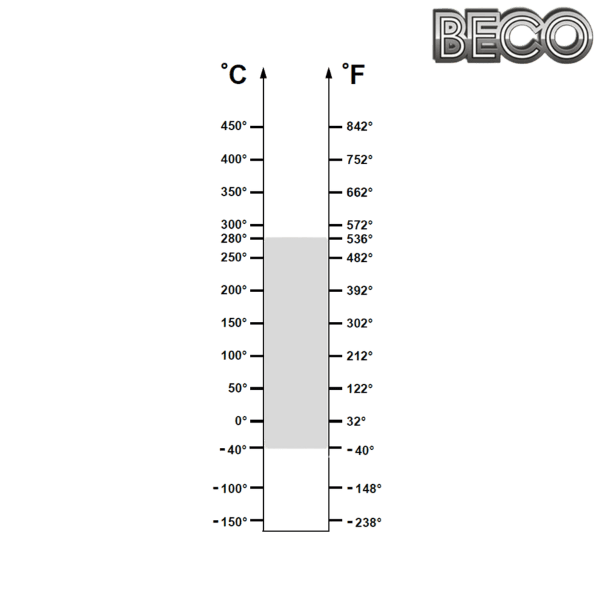

Operating Range - ‒40° / 280°C
Economic Operating Range - 200° / 280°C
NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result.
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
** Images are for representation purposes only
