Description
Brand - FAG
Item Number - 6230 FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 150
Outer Diameter (D) mm - 270
Width (B) mm - 45
Basic Dynamic Load Rating (Cr) N - 187000
Basic Static Load Rating (C0r) N - 168000
Fatigue Limit Load (Cur) N - 8100
Limiting Speed (nG) min–1 - 3350
Speed Rating (nϑr) min–1 - 3350
Calculation Factor (f0) - 15.2
Weight (m) kg - 10.2
Minimum Chamfer Dimension (r min) mm - 3
Shoulder Diameter Outer Ring (D1) mm - 229.15
Shoulder Diameter Inner Ring (d1) mm - 191.6

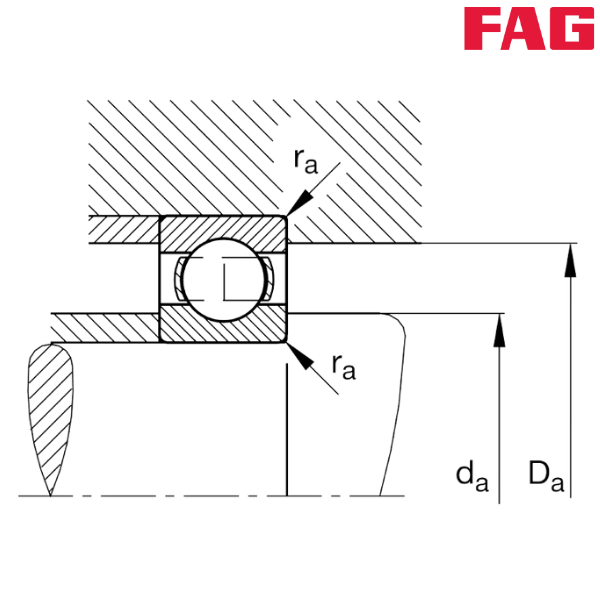

Minimum Diameter Shaft Shoulder (da) mm - 164
Maximum Diameter of Housing Shoulder (Da) mm - 256
Maximum Fillet Radius (ra) mm - 2.5
** Images are for representation purposes only
