Description
Brand - NILOS
Item Number - 623 AV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 3 mm
Outer Diameter (a) - 9.2 mm
Dimension (C) - 6 mm
Widtth (h) - 1.2 mm
Material Thickness (s) - 0.3 mm

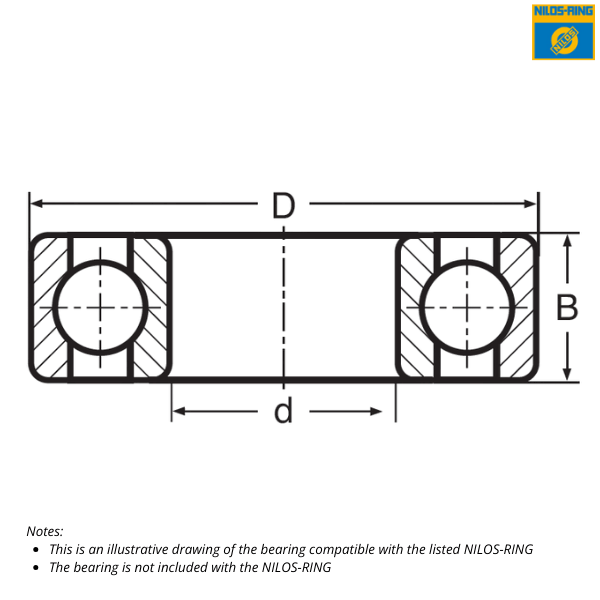

Description of Compatible Bearing (600 Series) :
Bearing Part Number - 623
Bearing Type - Single Row Deep Groove Ball Bearing
Inner Diameter (d) - 3 mm
Outer Diameter (D) - 10 mm
Width (B) - 4 mm
♦♦ Images are for representation purposes only
Item Number - 623 AV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 3 mm
Outer Diameter (a) - 9.2 mm
Dimension (C) - 6 mm
Widtth (h) - 1.2 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (600 Series) :
Bearing Part Number - 623
Bearing Type - Single Row Deep Groove Ball Bearing
Inner Diameter (d) - 3 mm
Outer Diameter (D) - 10 mm
Width (B) - 4 mm
♦♦ Images are for representation purposes only
