Description
Brand - SKF
Item Number - 6226 M/HC5C5S0 SKF
Category - Traction Motor, Hybrid Deep Groove Ball Bearings

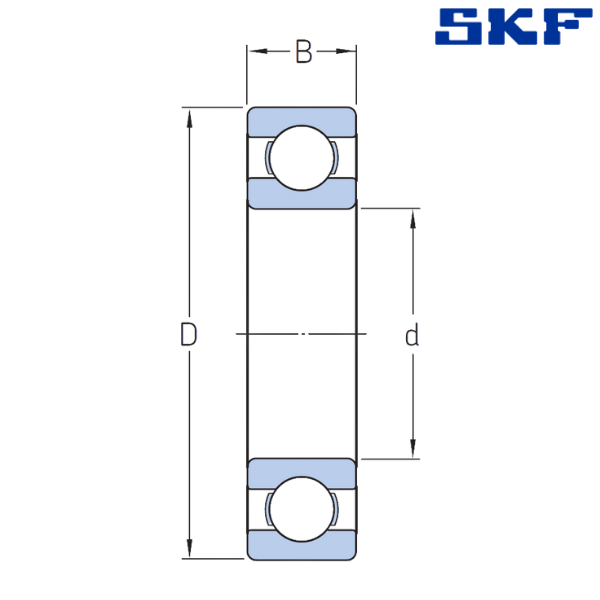

Bore Diameter (d) mm - 130
Outer Diameter (D) mm - 230
Width (B) mm - 40
Dynamic Load Rating (C) kN - 156
Static Load Rating (C0) kN - 132
Limiting Speed (r/min) - 5300
Weight (Kg) - 5.05
Designation Prefixes and Suffixes:
M - Machined Brass Cage, Rolling Element Centred
C5 - Bearing Internal Clearance Greater Than C4
HC5 - Rolling Elements Made of Silicon Nitride
** Images are for representation purposes only
