Description
Brand - ZEN
Item Number - 6224-M ZEN
Category - Deep Groove Ball Bearing (Metric Series)
Edge Type - Standard

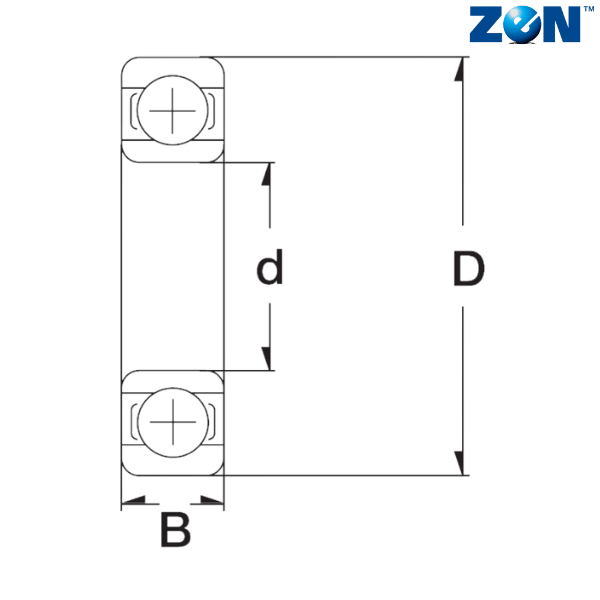

Inner Ring Dimension (d) mm - 120
Outer Ring Dimension (D) mm - 215
Width (B) mm - 40
Dynamic Load Rating (N) - 111500
Static Load Rating (N) - 99000
Limiting Speed (Grease) - 2.6
Weight (kg) - 5.5
Radial Play - 0.015-0.041
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
M - Brass Cage

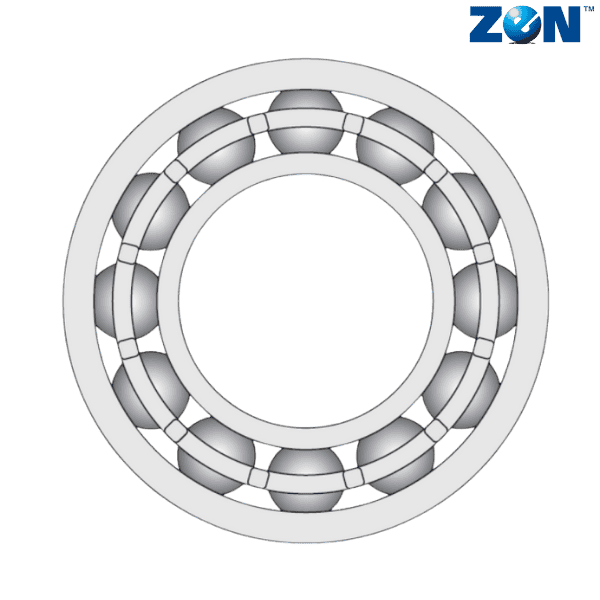

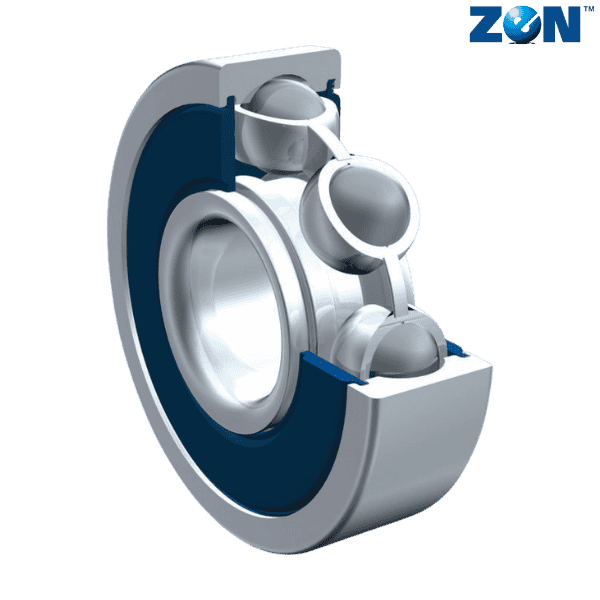

** Images are for representation purposes only
