Description
Brand - FAG
Item Number - 6221-2RSR FAG

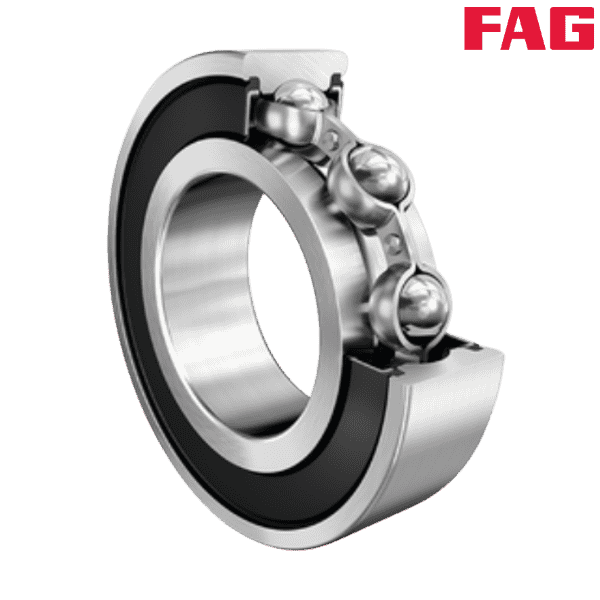

Category - Deep Groove Ball Bearing Single Row

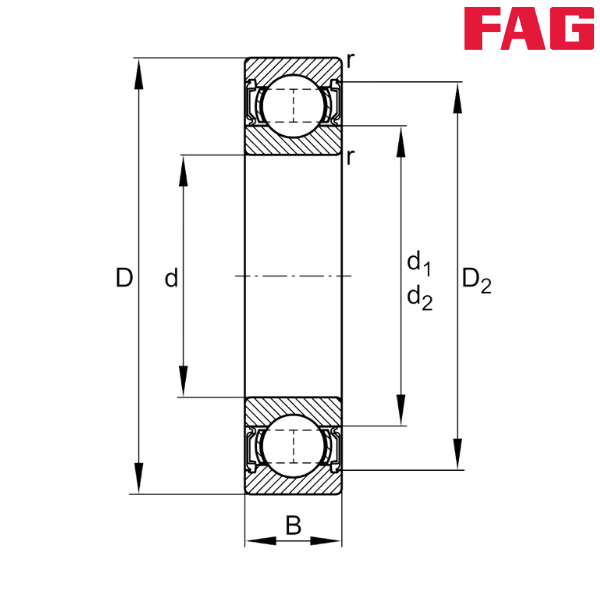

Inner Diameter (d) mm - 105
Outer Diameter (D) mm - 190
Width (B) mm - 36
Basic Dynamic Load Rating (Cr) N - 141000
Basic Static Load Rating (C0r) N - 105000
Fatigue Limit Load (Cur) N - 5800
Limiting Speed (nG) min–1 - 2030
Calculation Factor (f0) - 14.4
Weight (m) kg - 3.97
Minimum Chamfer Dimension (r min) mm - 2.1
Caliber Diameter Outer Ring (D2) mm - 168.06
Shoulder Diameter Inner Ring (d1) mm - 131.5

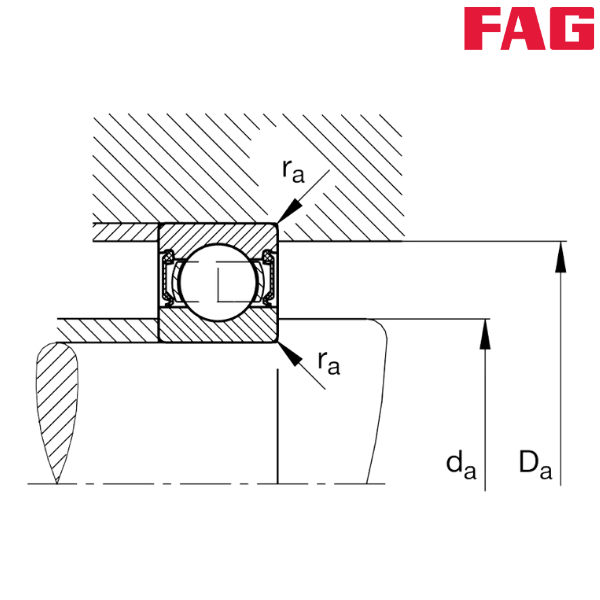

Minimum Diameter Shaft Shoulder (da) mm - 117
Maximum Diameter of Housing Shoulder (Da) mm - 178
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
