Description
Brand - FAG
Item Number - 62206-2RSR FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 30
Outer Diameter (D) mm - 62
Width (B) mm - 20
Basic Dynamic Load Rating (Cr) N - 19450
Basic Static Load Rating (C0r) N - 11260
Fatigue Limit Load (Cur) N - 780
Limiting Speed (nG) min–1 - 6600
Calculation Factor (f0) - 13.8
Weight (m) kg - 0.25
Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 55.2
Shoulder Diameter Inner Ring (d1) mm - 40.3
Minimum Diameter Shaft Shoulder (da) mm - 35.6
Maximum Diameter of Housing Shoulder (Da) mm - 56.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)

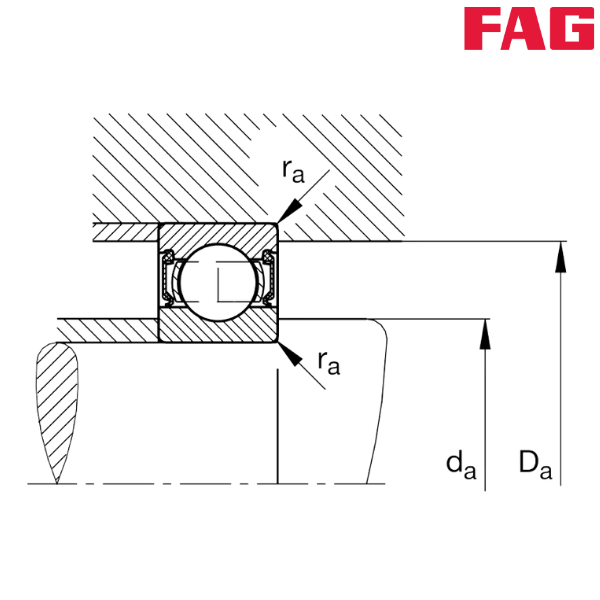

** Images are for representation purposes only
