Description
Brand - SKF
Item Number - 6220 M/C5VL0241 SKF
Category - Traction Motor, INSOCOAT Deep Groove Ball Bearings

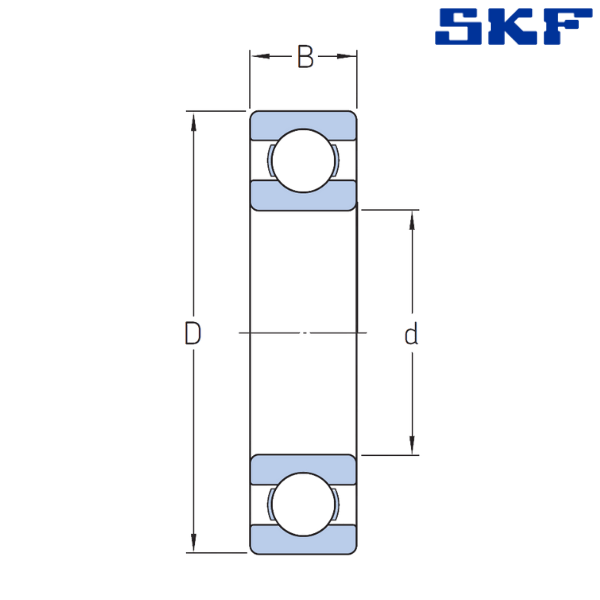

Bore Diameter (d) mm - 100
Outer Diameter (D) mm - 180
Width (B) mm - 36
Dynamic Load Rating (C) kN - 127
Static Load Rating (C0) kN - 93
Limiting Speed (r/min) - 7000
Weight (Kg) - 3.66
Designation Prefixes and Suffixes:
M - Machined Brass Cage, Rolling Element Centred
C5 - Bearing Internal Clearance Greater Than C4
VL - This Suffix is Followed By Three or Four Digit Numbers Refer to Special Executions.
Example: VL0241 Aluminium Oxide Coated Outside Surface of Outer Ring for Electrical Resistance up to 3000V DC
** Images are for representation purposes only
