Description
Brand - FAG
Item Number - 6220-2RSR FAG
Category - Deep Groove Ball Bearing Single Row

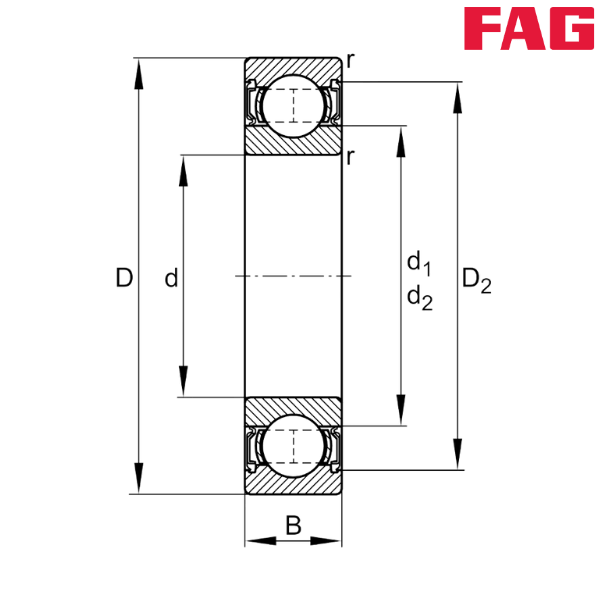

Inner Diameter (d) mm - 100
Outer Diameter (D) mm - 180
Width (B) mm - 34
Basic Dynamic Load Rating (Cr) N - 130000
Basic Static Load Rating (C0r) N - 93000
Fatigue Limit Load (Cur) N - 5500
Limiting Speed (nG) min–1 - 2140
Calculation Factor (f0) - 14.4
Weight (m) kg - 3.34
Minimum Chamfer Dimension (r min) mm - 2.1
Caliber Diameter Outer Ring (D2) mm - 158.9
Shoulder Diameter Inner Ring (d1) mm - 124.7

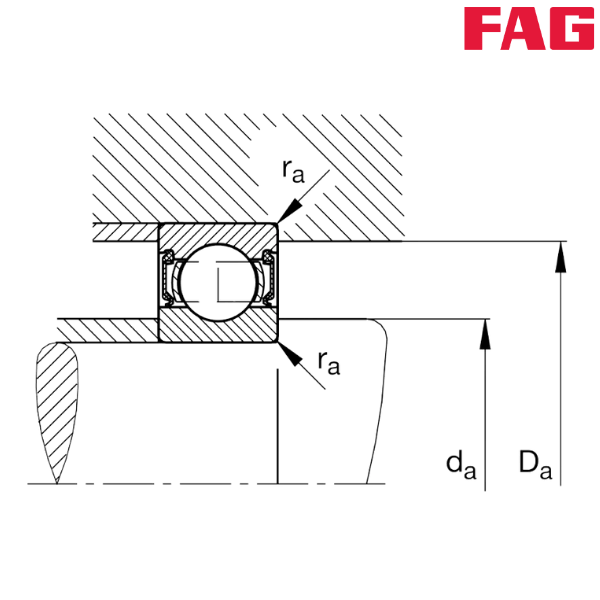

Minimum Diameter Shaft Shoulder (da) mm - 112
Maximum Diameter of Housing Shoulder (Da) mm - 168
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
