Description
Brand - FAG
Item Number - 6219 FAG
Category - Deep Groove Ball Bearing Single Row

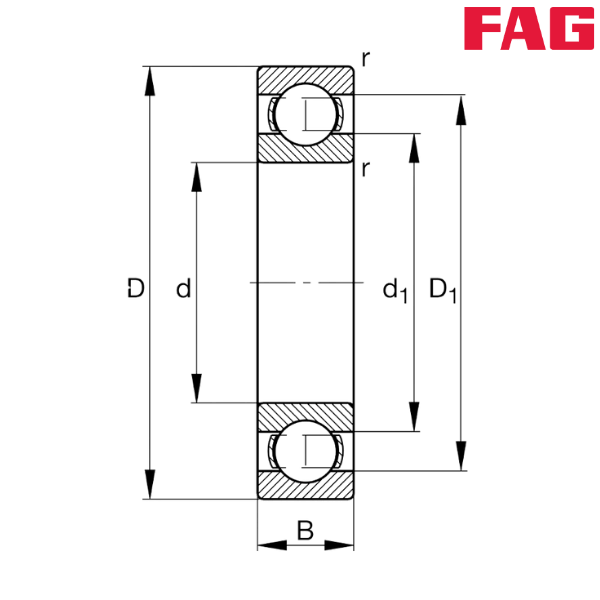

Inner Diameter (d) mm - 95
Outer Diameter (D) mm - 170
Width (B) mm - 32
Basic Dynamic Load Rating (Cr) N - 116000
Basic Static Load Rating (C0r) N - 82000
Fatigue Limit Load (Cur) N - 4800
Limiting Speed (nG) min–1 - 5300
Speed Rating (nϑr) min–1 - 4950
Calculation Factor (f0) - 14.5
Weight (m) kg - 2.69
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 146.72
Shoulder Diameter Inner Ring (d1) mm - 118.66
Minimum Diameter Shaft Shoulder (da) mm - 107
Maximum Diameter of Housing Shoulder (Da) mm - 158
Maximum Fillet Radius (ra) mm - 2.1

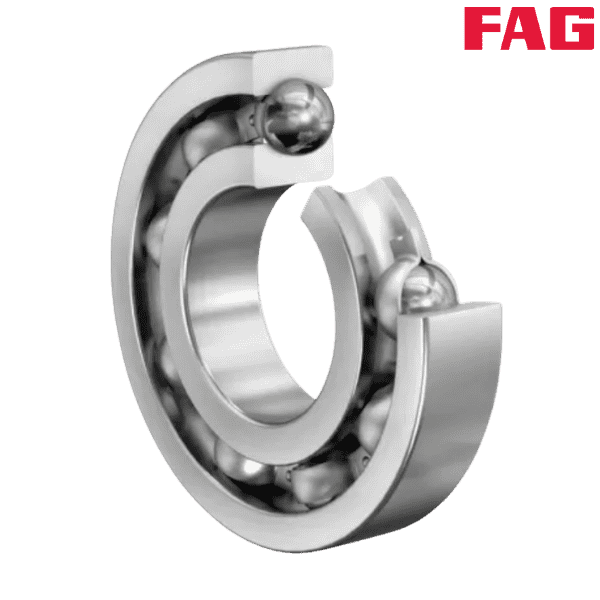

** Images are for representation purposes only
