Description
Brand - BECO
Item Number - 6218 BHTS ZZ C4 200° BECO
Category - Ball Bearings for High Temperature
Bore Diameter (B) mm - 90
Outer Diameter (D) mm - 160
Width (W) mm - 30
Weight (kg) - 2.15
Limiting Speed (RPM) - 800
Static Load at 200°C (kN) - 66.1
Static Load at 20°C (kN) - 73.5

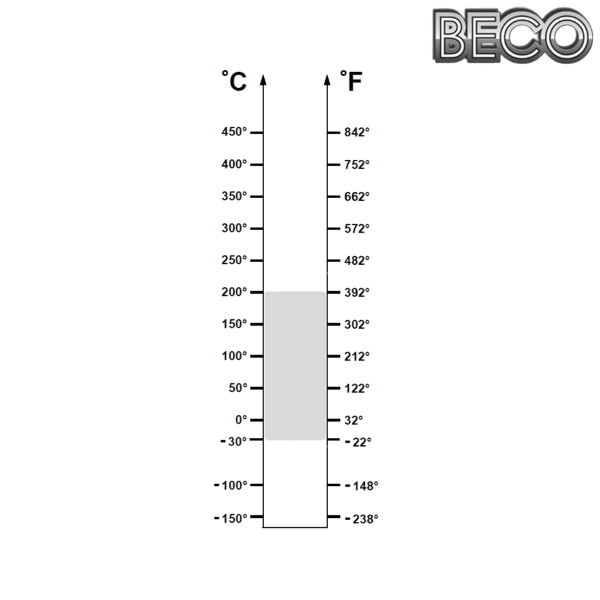

Operating Range - ‒30° / 200°C
Economic Operating Range - 120° / 200°C
NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result.
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
** Images are for representation purposes only
