Description
Brand - FAG
Item Number - 6218-2RSR FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 90
Outer Diameter (D) mm - 160
Width (B) mm - 30
Basic Dynamic Load Rating (Cr) N - 102000
Basic Static Load Rating (C0r) N - 74000
Fatigue Limit Load (Cur) N - 4500
Limiting Speed (nG) min–1 - 2380
Calculation Factor (f0) - 14.6
Weight (m) kg - 2.21
Minimum Chamfer Dimension (r min) mm - 2
Caliber Diameter Outer Ring (D2) mm - 143.42
Shoulder Diameter Inner Ring (d1) mm - 112.25

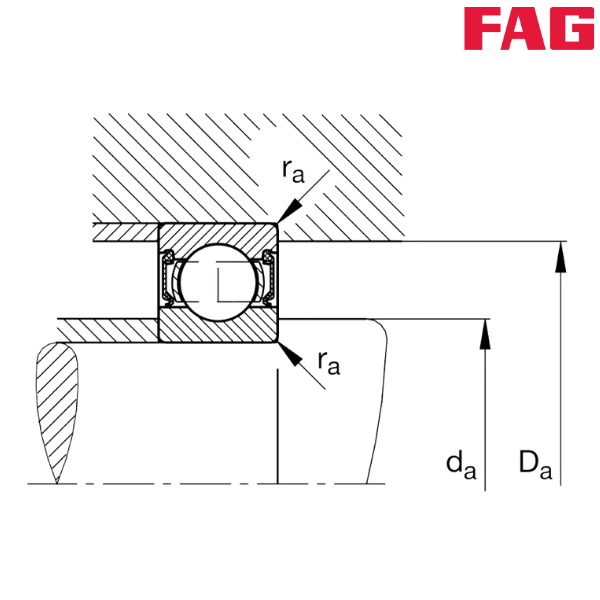

Minimum Diameter Shaft Shoulder (da) mm - 101
Maximum Diameter of Housing Shoulder (Da) mm - 149
Maximum Fillet Radius (ra) mm - 2
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
