Description
Brand - NILOS
Item Number - 6216 ZAV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 80 mm
Outer Diameter (a) - 132 mm
Dimension (C) - 105 mm
Widtth (h) - 3.5 mm
Material Thickness (s) - 0.5 mm

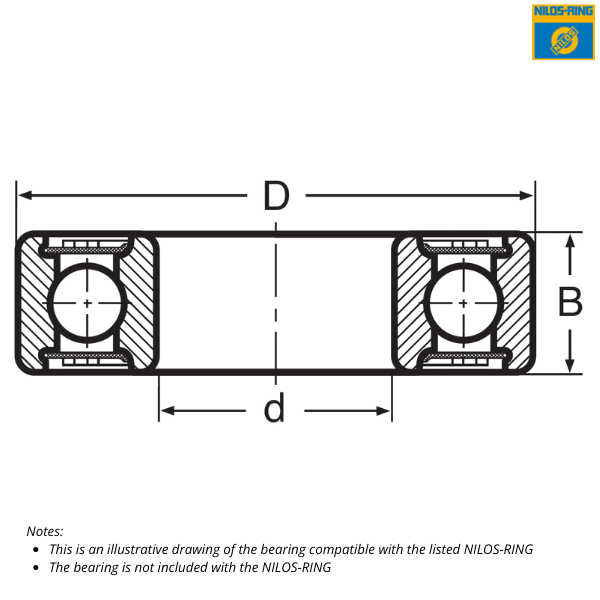

Description of Compatible Bearing (62 Series with Shields or Seals) :
Bearing Part Number - 6216 Z
Bearing Type - Single Row Deep Groove Ball Bearing (With Shields or Seals)
Inner Diameter (d) - 80 mm
Outer Diameter (D) - 140 mm
Width (B) - 26 mm
♦♦ Images are for representation purposes only
Item Number - 6216 ZAV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 80 mm
Outer Diameter (a) - 132 mm
Dimension (C) - 105 mm
Widtth (h) - 3.5 mm
Material Thickness (s) - 0.5 mm
Description of Compatible Bearing (62 Series with Shields or Seals) :
Bearing Part Number - 6216 Z
Bearing Type - Single Row Deep Groove Ball Bearing (With Shields or Seals)
Inner Diameter (d) - 80 mm
Outer Diameter (D) - 140 mm
Width (B) - 26 mm
♦♦ Images are for representation purposes only
