Description
Brand - FAG
Item Number - 6216-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 80
Outer Diameter (D) mm - 140
Width (B) mm - 26
Basic Dynamic Load Rating (Cr) N - 77000
Basic Static Load Rating (C0r) N - 55000
Fatigue Limit Load (Cur) N - 3650
Limiting Speed (nG) min–1 - 6200
Speed Rating (nϑr) min–1 - 5500
Calculation Factor (f0) - 15
Weight (m) kg - 1.48
Minimum Chamfer Dimension (r min) mm - 2
Caliber Diameter Outer Ring (D2) mm - 124.38
Shoulder Diameter Inner Ring (d1) mm - 98.5

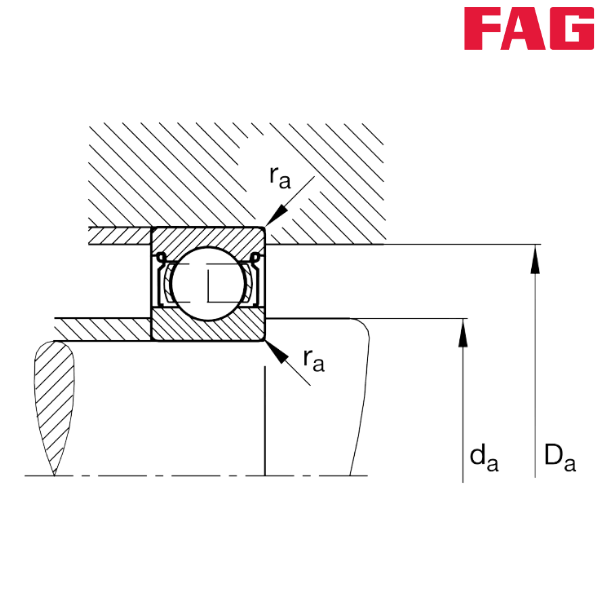

Minimum Diameter Shaft Shoulder (da) mm - 91
Maximum Diameter of Housing Shoulder (Da) mm - 129
Maximum Fillet Radius (ra) mm - 2
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
