6215 M/HC5C4HS0 SKF

SKF

Download Data Sheet

Country Of Origin: SWEDEN

Variant

Share this product

Brand - SKF
Item Number - 6215 M/HC5C4HS0 SKF
Category - Traction Motor, Hybrid Deep Groove Ball Bearings

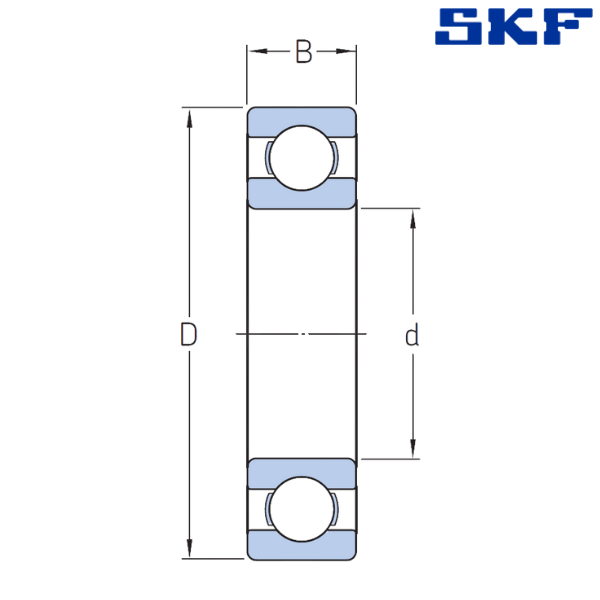

Bore Diameter (d) mm - 75
Outer Diameter (D) mm - 130
Width (B) mm - 25
Dynamic Load Rating (C) kN - 68.9
Static Load Rating (C0) kN - 49
Limiting Speed (r/min) - 11000
Weight (Kg) - 1.25

Designation Prefixes and Suffixes:

M - Machined Brass Cage, Rolling Element Centred
C4H - Bearing Internal Clearance Greater Than C3 (Upper Half of C4 Clearance Range)
C5 - Bearing Internal Clearance Greater Than C4
HC5 - Rolling Elements Made of Silicon Nitride

** Images are for representation purposes only
