Description
Brand - FAG
Item Number - 6215 FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 75
Outer Diameter (D) mm - 130
Width (B) mm - 25
Basic Dynamic Load Rating (Cr) N - 70000
Basic Static Load Rating (C0r) N - 49000
Fatigue Limit Load (Cur) N - 3300
Limiting Speed (nG) min–1 - 7800
Speed Rating (nϑr) min–1 - 5900
Calculation Factor (f0) - 14.6
Weight (m) kg - 1.19
Minimum Chamfer Dimension (r min) mm - 1.5
Shoulder Diameter Outer Ring (D1) mm - 113
Shoulder Diameter Inner Ring (d1) mm - 92.1

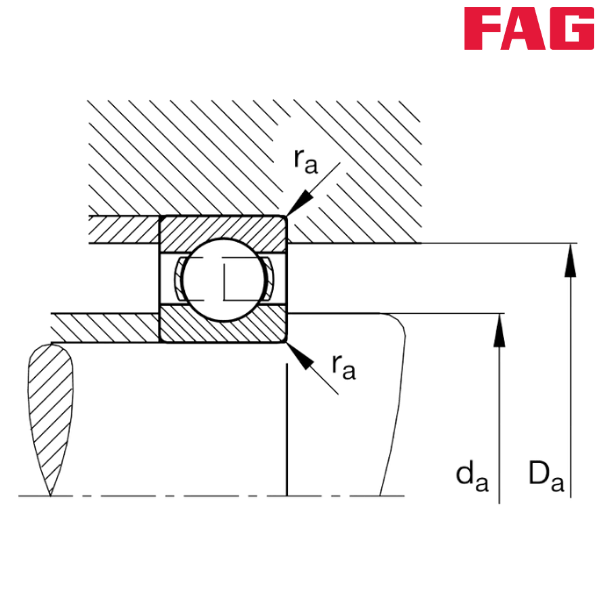

Minimum Diameter Shaft Shoulder (da) mm - 84
Maximum Diameter of Housing Shoulder (Da) mm - 121
Maximum Fillet Radius (ra) mm - 1.5
** Images are for representation purposes only
