Description
Brand - FAG
Item Number - 6214-2RSR FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 70
Outer Diameter (D) mm - 125
Width (B) mm - 24
Basic Dynamic Load Rating (Cr) N - 66000
Basic Static Load Rating (C0r) N - 44000
Fatigue Limit Load (Cur) N - 3000
Limiting Speed (nG) min–1 - 3100
Calculation Factor (f0) - 14.4
Weight (m) kg - 1.11
Minimum Chamfer Dimension (r min) mm - 1.5
Caliber Diameter Outer Ring (D2) mm - 110.72
Shoulder Diameter Inner Ring (d1) mm - 86.75

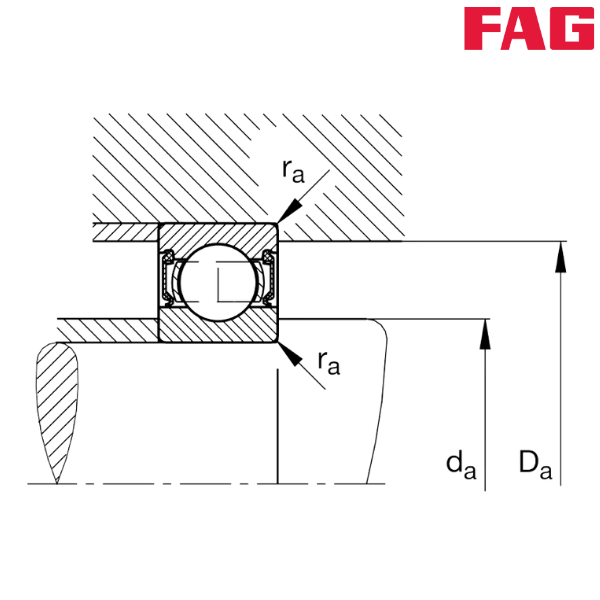

Minimum Diameter Shaft Shoulder (da) mm - 79
Maximum Diameter of Housing Shoulder (Da) mm - 116
Maximum Fillet Radius (ra) mm - 1.5
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
