Description
Brand - FAG
Item Number - 6213-2RSR FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 65
Outer Diameter (D) mm - 120
Width (B) mm - 23
Basic Dynamic Load Rating (Cr) N - 63000
Basic Static Load Rating (C0r) N - 41500
Fatigue Limit Load (Cur) N - 2850
Limiting Speed (nG) min–1 - 3250
Calculation Factor (f0) - 14.4
Weight (m) kg - 1.03
Minimum Chamfer Dimension (r min) mm - 1.5
Caliber Diameter Outer Ring (D2) mm - 106.34
Shoulder Diameter Inner Ring (d1) mm - 82

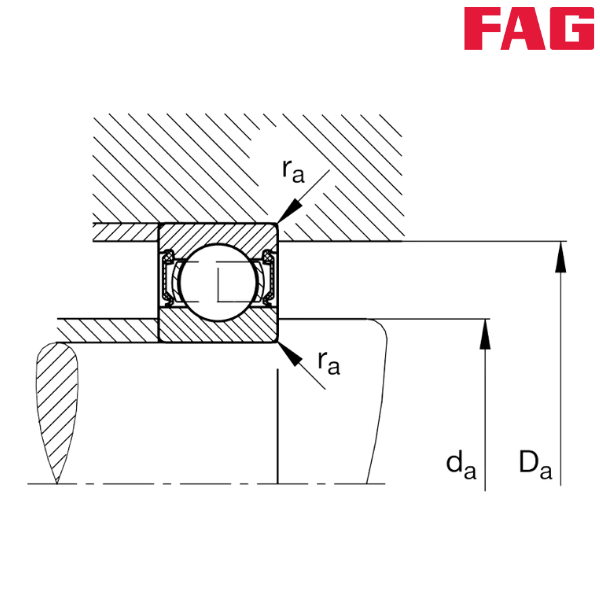

Minimum Diameter Shaft Shoulder (da) mm - 74
Maximum Diameter of Housing Shoulder (Da) mm - 111
Maximum Fillet Radius (ra) mm - 1.5
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
