Description
Brand - FAG
Item Number - 6206-C FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 30
Outer Diameter (D) mm - 62
Width (B) mm - 16
Basic Dynamic Load Rating (Cr) N - 22000
Basic Static Load Rating (C0r) N - 11300
Fatigue Limit Load (Cur) N - 770
Limiting Speed (nG) min–1 - 17800
Speed Rating (nϑr) min–1 - 13400
Calculation Factor (f0) - 13.8
Weight (m) kg - 0.186
Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 54.91
Caliber Diameter Inner Ring (d2) mm - 37.72

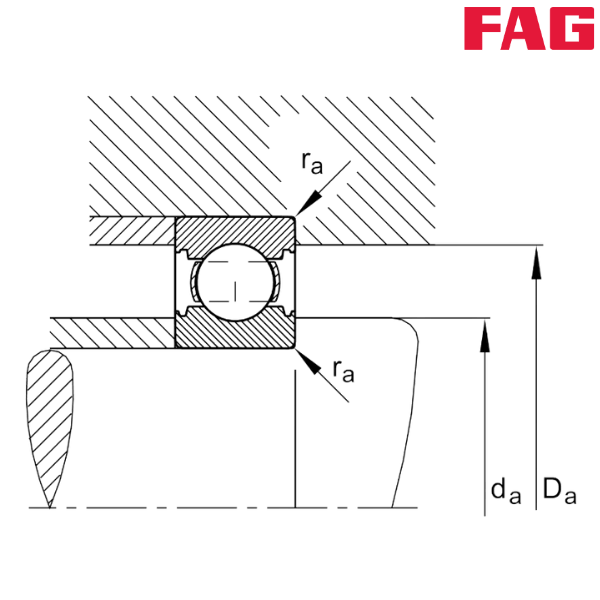

Minimum Diameter Shaft Shoulder (da) mm - 35.6
Maximum Diameter of Housing Shoulder (Da) mm - 56.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
** Images are for representation purposes only
