Description
Brand - ZEN

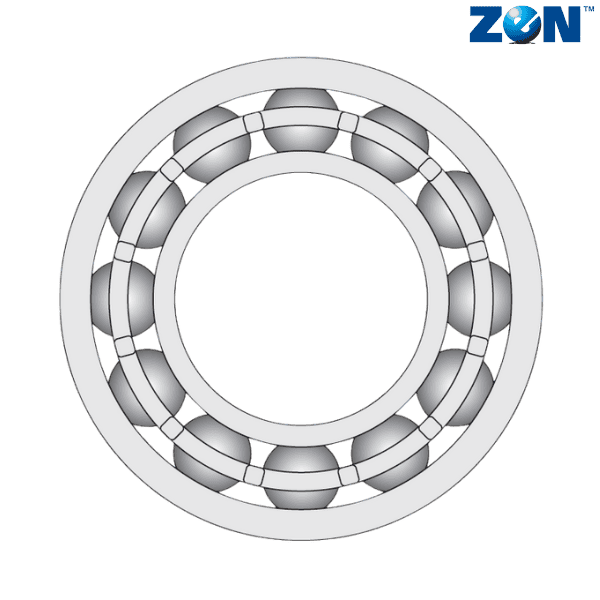

Item Number - 6204-2Z.T9H.C3 ZEN

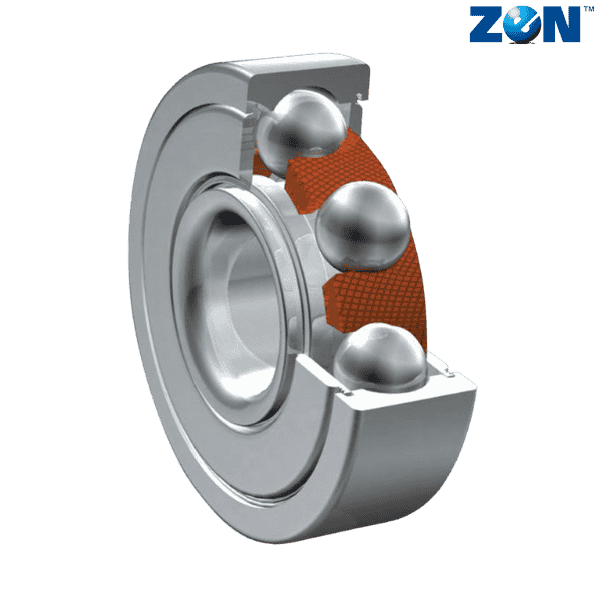

Category - Radial Ball Bearing with Plastic Cage

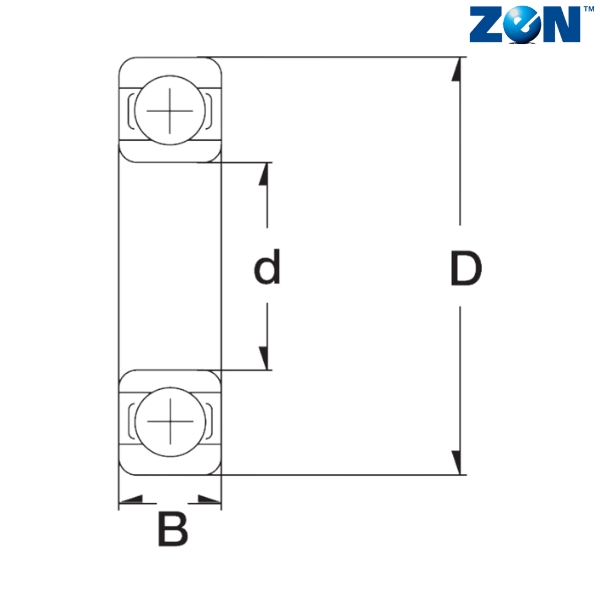

Inner Ring Dimension (d) mm - 20
Outer Ring Dimension (D) mm - 47
Width (B) mm - 14
Dynamic Load Rating (N) - 12800
Static Load Rating (N) - 6600
Limiting Speed - 15
Weight (kg) - 0.107
Radial Play - 0.013 - 0.028
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2Z - Metal Shields
T9H - Glass Fibre Reinforced Cage
** Images are for representation purposes only
