Description
Brand - FAG
Item Number - 61948 FAG
Category - Deep Groove Ball Bearing Single Row

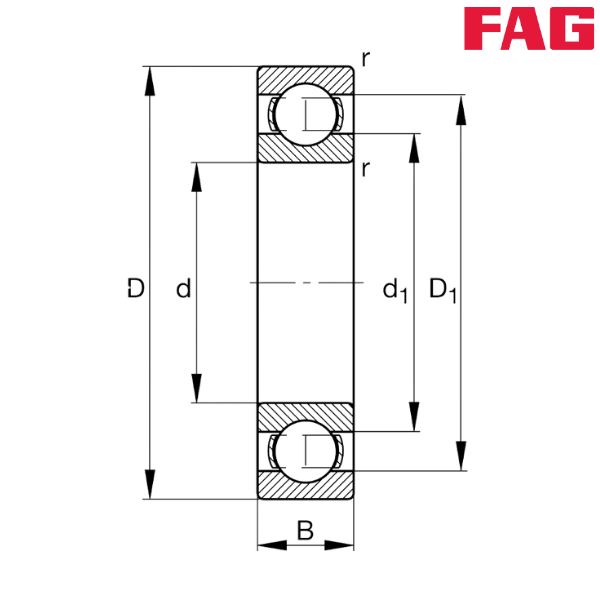

Inner Diameter (d) mm - 240
Outer Diameter (D) mm - 320
Width (B) mm - 38
Basic Dynamic Load Rating (Cr) N - 211000
Basic Static Load Rating (C0r) N - 240000
Fatigue Limit Load (Cur) N - 8600
Limiting Speed (nG) min–1 - 2600
Speed Rating (nϑr) min–1 - 2330
Calculation Factor (f0) - 16.3
Weight (m) kg - 6.78
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 298
Shoulder Diameter Inner Ring (d1) mm - 262.85

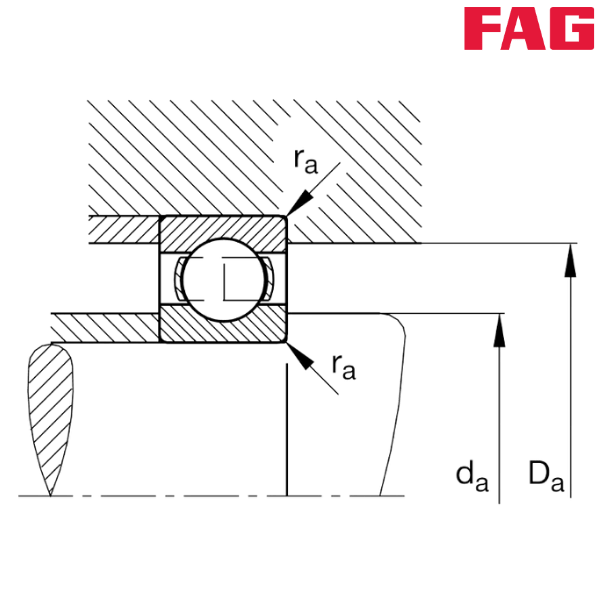

Minimum Diameter Shaft Shoulder (da) mm - 250.2
Maximum Diameter of Housing Shoulder (Da) mm - 309.8
Maximum Fillet Radius (ra) mm - 2.1

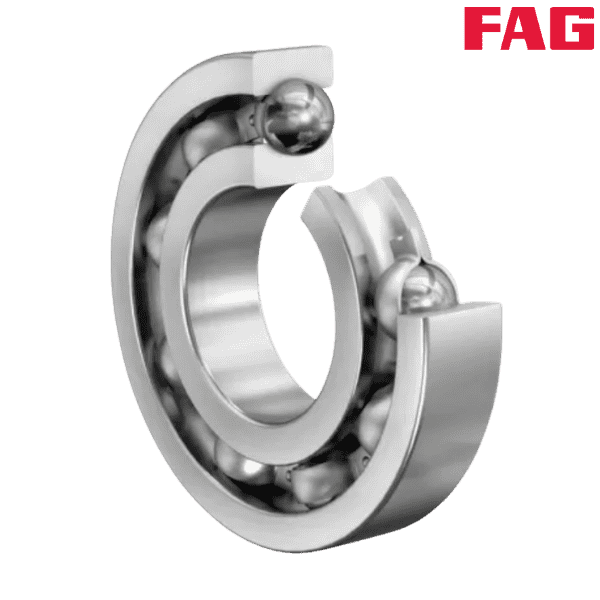

** Images are for representation purposes only
