Description
Brand - FAG
Item Number - 61914-2RZ FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 70
Outer Diameter (D) mm - 100
Width (B) mm - 16
Basic Dynamic Load Rating (Cr) N - 25000
Basic Static Load Rating (C0r) N - 21200
Fatigue Limit Load (Cur) N - 1200
Limiting Speed (nG) min–1 - 8100
Speed Rating (nϑr) min–1 - 6400
Calculation Factor (f0) - 16.4
Weight (m) kg - 0.34
Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 93.3
Shoulder Diameter Inner Ring (d1) mm - 79.7

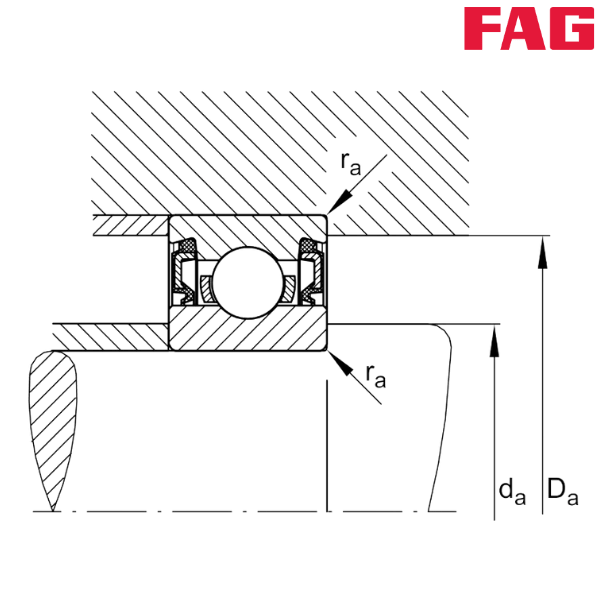

Minimum Diameter Shaft Shoulder (da) mm - 74.6
Maximum Diameter of Housing Shoulder (Da) mm - 95.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RZ - Non-Contact Seal on Both Sides (Rubberised Gap Seal)
** Images are for representation purposes only
