Description
Brand - NILOS
Item Number - 61911 JV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 60 mm
Dimension (c) - 73 mm
Outer Diamter (D) - 80 mm
Width (h) - 2.5 mm
Material Thickness (s) - 0.3 mm

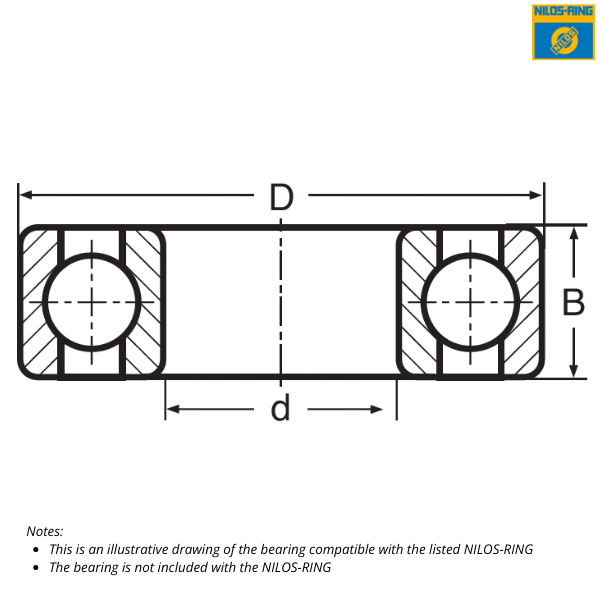

Description of Compatible Bearing (619 Series) :
Bearing Part Number - 61911
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 55 mm
Outer Diameter (D) - 80 mm
Width (B) - 13 mm
♦ ♦ Images are for representation purposes only
Item Number - 61911 JV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 60 mm
Dimension (c) - 73 mm
Outer Diamter (D) - 80 mm
Width (h) - 2.5 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (619 Series) :
Bearing Part Number - 61911
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 55 mm
Outer Diameter (D) - 80 mm
Width (B) - 13 mm
♦ ♦ Images are for representation purposes only
