Description
Brand - FAG
Item Number - 61907 FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 35
Outer Diameter (D) mm - 55
Width (B) mm - 10
Basic Dynamic Load Rating (Cr) N - 10900
Basic Static Load Rating (C0r) N - 7750
Fatigue Limit Load (Cur) N - 520
Limiting Speed (nG) min–1 - 17800
Speed Rating (nϑr) min–1 - 10000
Calculation Factor (f0) - 15.6
Weight (m) kg - 0.076

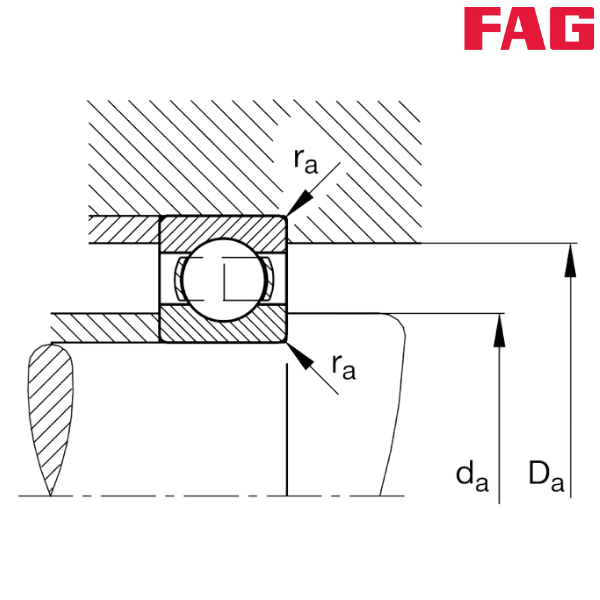

Minimum Chamfer Dimension (r min) mm - 0.6
Shoulder Diameter Outer Ring (D1) mm - 48.4
Shoulder Diameter Inner Ring (d1) mm - 41.6
Minimum Diameter Shaft Shoulder (da) mm - 38.2
Maximum Diameter of Housing Shoulder (Da) mm - 51.8
Maximum Fillet Radius (ra) mm - 0.6
** Images are for representation purposes only
