Description
Brand - FAG
Item Number - 61905 FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 25
Outer Diameter (D) mm - 42
Width (B) mm - 9
Basic Dynamic Load Rating (Cr) N - 7010
Basic Static Load Rating (C0r) N - 4550
Fatigue Limit Load (Cur) N - 290
Limiting Speed (nG) min–1 - 24200
Speed Rating (nϑr) min–1 - 13500
Calculation Factor (f0) - 15.4
Weight (m) kg - 0.042

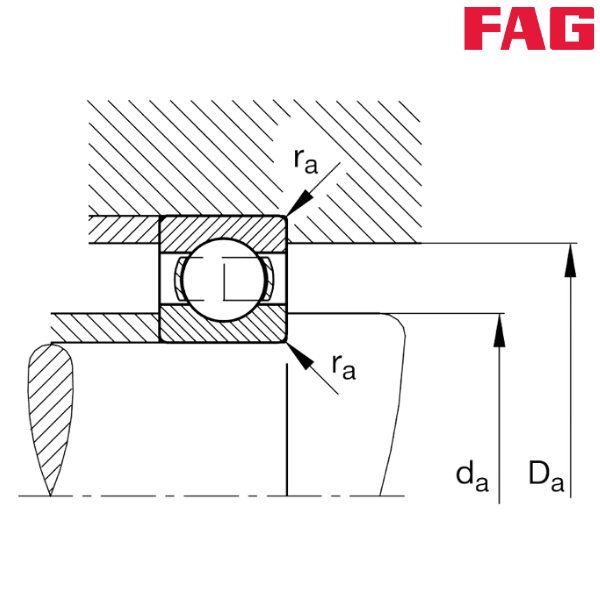

Minimum Chamfer Dimension (r min) mm - 0.3
Shoulder Diameter Outer Ring (D1) mm - 37.5
Shoulder Diameter Inner Ring (d1) mm - 30.9
Minimum Diameter Shaft Shoulder (da) mm - 27
Maximum Diameter of Housing Shoulder (Da) mm - 40
Maximum Fillet Radius (ra) mm - 0.3
** Images are for representation purposes only
