Description
Brand - FAG
Item Number - 619/1400-M FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter(d) mm - 1400
Outer Diameter(D) mm - 1820
Weight (Kg) - 1260
Inner Width(B) mm - 185
Minimum Chamfer Dimension(r) mm - 9.5
Shoulder diameter outer ring(D1) mm - 1684
Shoulder diameter inner ring(d1) mm - 1540

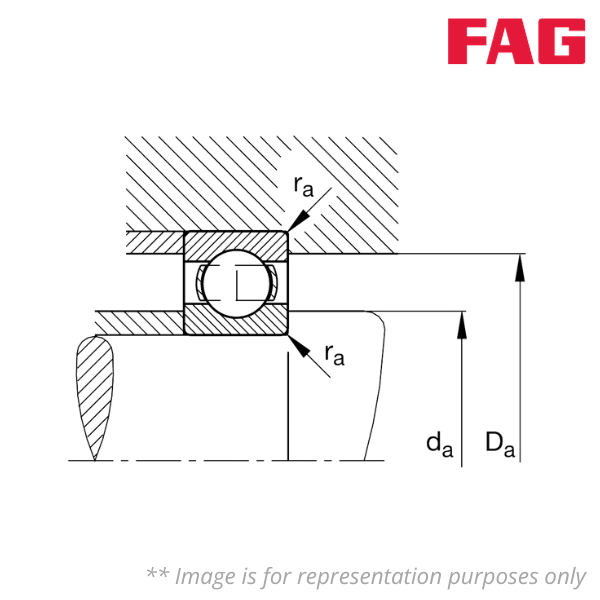

Minimum diameter shaft shoulder(da) mm - 1434
Maximum diameter of housing shoulder(Da) mm - 1786
Maximum fillet radius(ra) mm - 8
Basic Dynamic load rating(Cr) kN - 1630
Basic Static load rating(C0r) kN - 5400
Fatigue limit load current(Cur) kN - 80
Calculation factor(f0) - 16.2
Limiting speed (RPM) - 670
Reference speed (RPM) - 335
