61856/HC5C3S0 SKF

SKF

Download Data Sheet

Country Of Origin: SWEDEN

Variant

Share this product

Brand - SKF
Item Number - 61856/HC5C3S0 SKF
Category - Traction Motor, Hybrid Deep Groove Ball Bearings

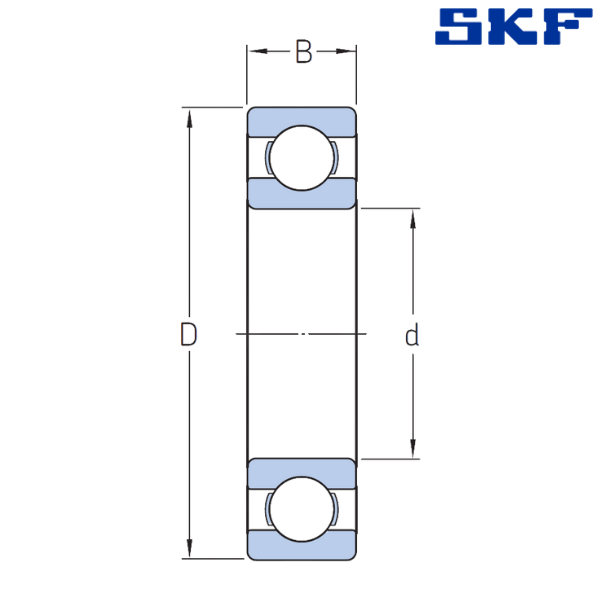

Bore Diameter (d) mm - 280
Outer Diameter (D) mm - 350
Width (B) mm - 33
Dynamic Load Rating (C) kN - 138
Static Load Rating (C0) kN - 200
Limiting Speed (r/min) - 2300
Weight (Kg) - 5.71

Designation Prefixes and Suffixes:

C3 - Bearing Internal Clearance Greater Than Normal (CN)
C5 - Bearing Internal Clearance Greater Than C4
HC5 - Rolling Elements Made of Silicon Nitride

** Images are for representation purposes only
