Description
Brand - FAG
Item Number - 61852 FAG
Category - Deep Groove Ball Bearing Single Row

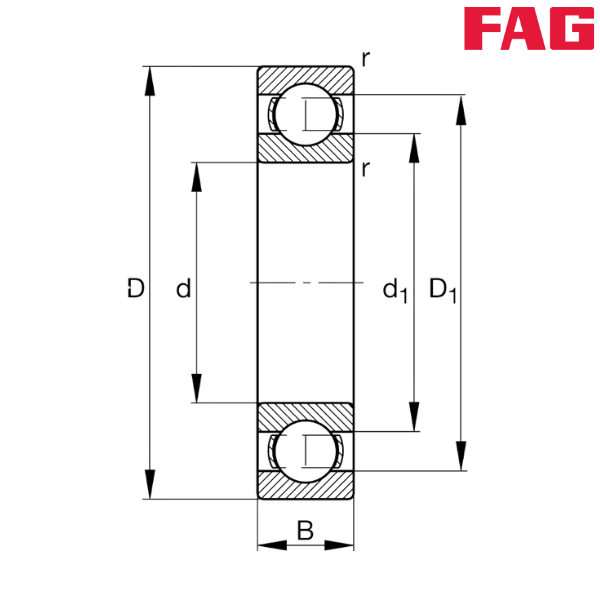

Inner Diameter (d) mm - 260
Outer Diameter (D) mm - 320
Width (B) mm - 28
Basic Dynamic Load Rating (Cr) N - 102000
Basic Static Load Rating (C0r) N - 132000
Fatigue Limit Load (Cur) N - 4650
Limiting Speed (nG) min–1 - 2700
Speed Rating (nϑr) min–1 - 2070
Calculation Factor (f0) - 15.8
Weight (m) kg - 4.15
Minimum Chamfer Dimension (r min) mm - 2
Shoulder Diameter Outer Ring (D1) mm - 301.7
Shoulder Diameter Inner Ring (d1) mm - 279.3
Minimum Diameter Shaft Shoulder (da) mm - 268.8
Maximum Diameter of Housing Shoulder (Da) mm - 311.2
Maximum Fillet Radius (ra) mm - 2

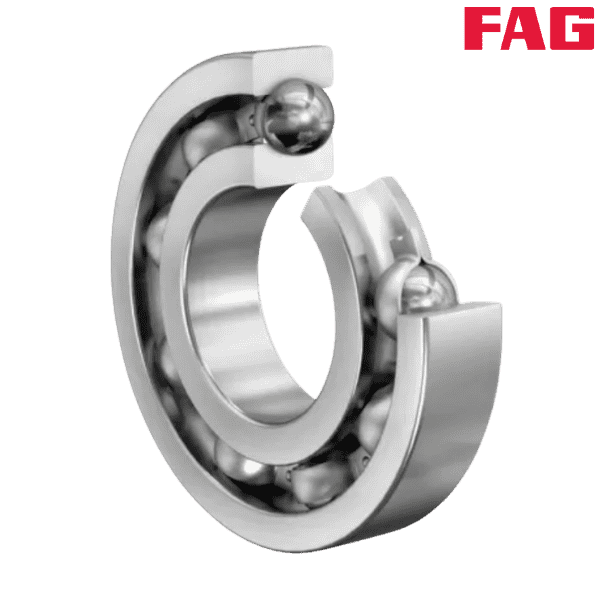

** Images are for representation purposes only
