Description
Brand - FAG
Item Number - 61824-2RZ-Y FAG
Category - Deep Groove Ball Bearing Single Row

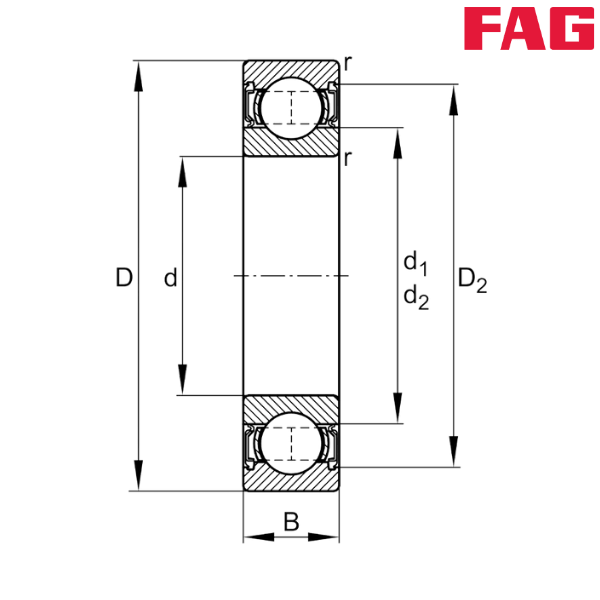

Inner Diameter (d) mm - 120
Outer Diameter (D) mm - 150
Width (B) mm - 16
Basic Dynamic Load Rating (Cr) N - 30500
Basic Static Load Rating (C0r) N - 33000
Fatigue Limit Load (Cur) N - 1730
Limiting Speed (nG) min–1 - 5100
Speed Rating (nϑr) min–1 - 3750
Calculation Factor (f0) - 16
Weight (m) kg - 0.52
Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 143.3
Shoulder Diameter Inner Ring (d1) mm - 129.7

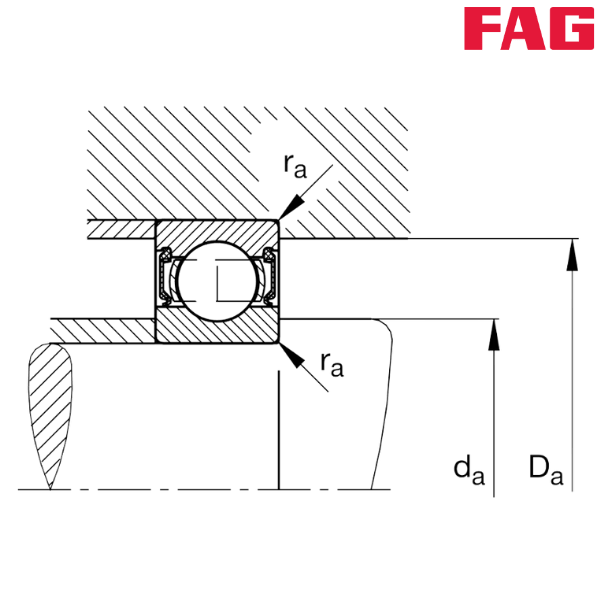

Minimum Diameter Shaft Shoulder (da) mm - 124.6
Maximum Diameter of Housing Shoulder (Da) mm - 145.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
Y - Sheet Brass Cage
2RZ - Non-Contact Seal on Both Sides (Rubberised Gap Seal)

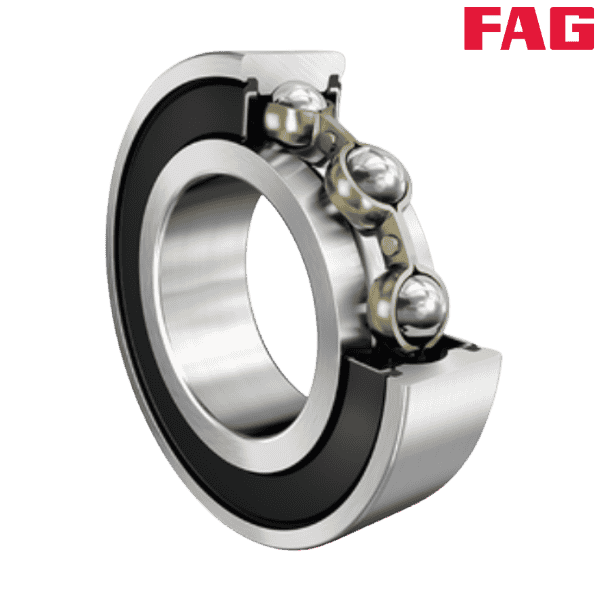

** Images are for representation purposes only
