Description
Brand - FAG
Item Number - 61819-2RSR-Y FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 95
Outer Diameter (D) mm - 120
Width (B) mm - 13
Basic Dynamic Load Rating (Cr) N - 21000
Basic Static Load Rating (C0r) N - 21300
Fatigue Limit Load (Cur) N - 1230
Limiting Speed (nG) min–1 - 2600
Calculation Factor (f0) - 16.1
Weight (m) kg - 0.295
Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 114.2
Shoulder Diameter Inner Ring (d1) mm - 103.2

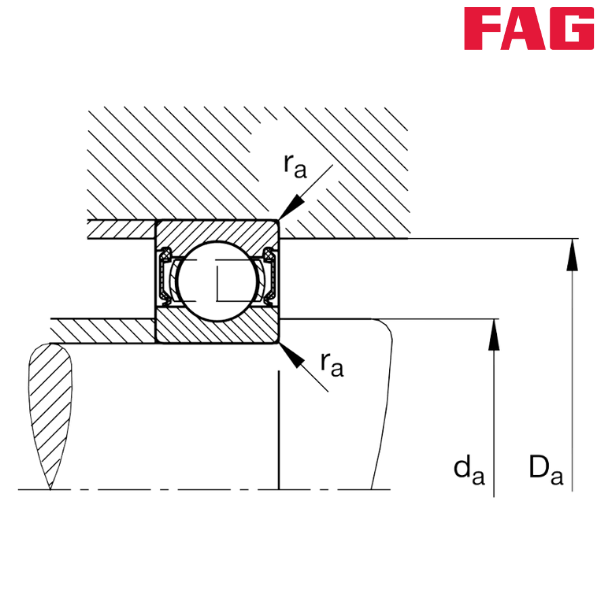

Minimum Diameter Shaft Shoulder (da) mm - 99.6
Maximum Diameter of Housing Shoulder (Da) mm - 115.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
Y - Sheet Brass Cage
2RSR - Contact Seal on Both Sides (Lip Seal)
