Description
Brand - FAG
Item Number - 61818-2RZ-Y FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 90
Outer Diameter (D) mm - 115
Width (B) mm - 13
Basic Dynamic Load Rating (Cr) N - 20700
Basic Static Load Rating (C0r) N - 20600
Fatigue Limit Load (Cur) N - 1200
Limiting Speed (nG) min–1 - 6900
Speed Rating (nϑr) min–1 - 4600
Calculation Factor (f0) - 16.1
Weight (m) kg - 0.31

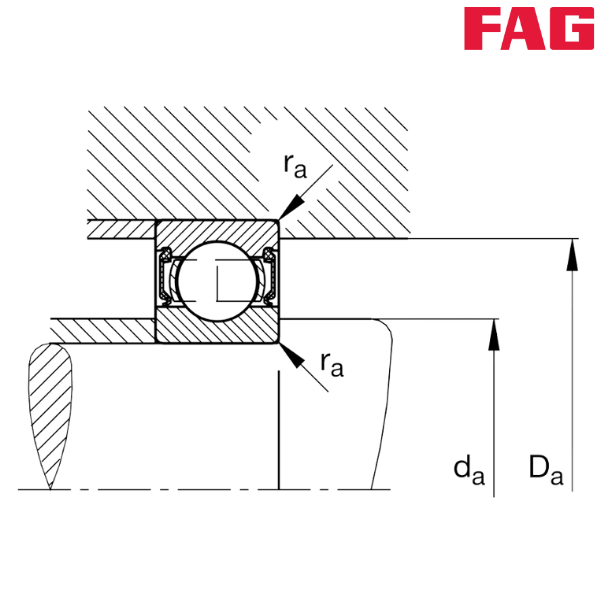

Minimum Chamfer Dimension (r min) mm - 1
Caliber Diameter Outer Ring (D2) mm - 109.2
Shoulder Diameter Inner Ring (d1) mm - 98.2
Minimum Diameter Shaft Shoulder (da) mm - 94.6
Maximum Diameter of Housing Shoulder (Da) mm - 110.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
Y - Sheet Brass Cage
2RZ - Non-Contact Seal on Both Sides (Rubberised Gap Seal)
