Description
Brand - FAG
Item Number - 61817-Y FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 85
Outer Diameter (D) mm - 110
Width (B) mm - 13
Basic Dynamic Load Rating (Cr) N - 20400
Basic Static Load Rating (C0r) N - 19800
Fatigue Limit Load (Cur) N - 1160
Limiting Speed (nG) min–1 - 11100
Speed Rating (nϑr) min–1 - 4900
Calculation Factor (f0) - 16.2
Weight (m) kg - 0.28
Minimum Chamfer Dimension (r min) mm - 1
Shoulder Diameter Outer Ring (D1) mm - 101.97
Shoulder Diameter Inner Ring (d1) mm - 93.2

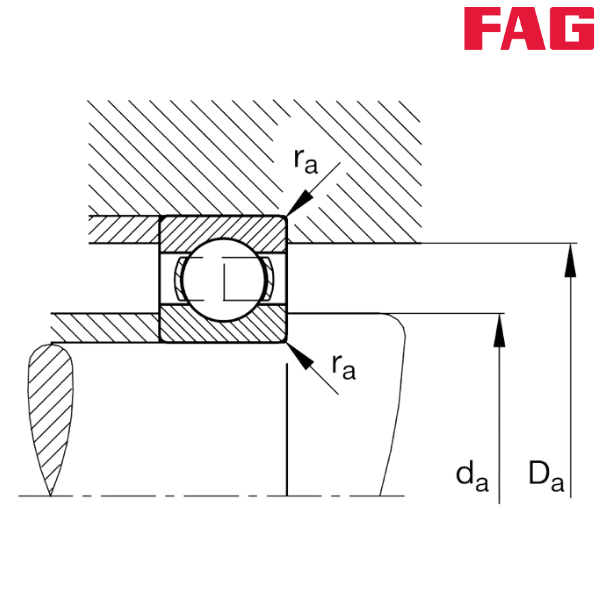

Minimum Diameter Shaft Shoulder (da) mm - 89.6
Maximum Diameter of Housing Shoulder (Da) mm - 105.4
Maximum Fillet Radius (ra) mm - 1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
Y - Sheet Brass Cage
** Images are for representation purposes only
