Description
Brand - BECO
Item Number - 61815 BHTS ZZ 280° BECO
Category - Ball Bearings for Extreme Temperature
Bore Diameter (B) mm - 75
Outer Diameter (D) mm - 95
Width (W) mm - 10
Weight (kg) - 0.143
Limiting Speed (RPM) - 448
Static Load at 280°C (kN) - 9.57
Static Load at 20°C (kN) - 13.4

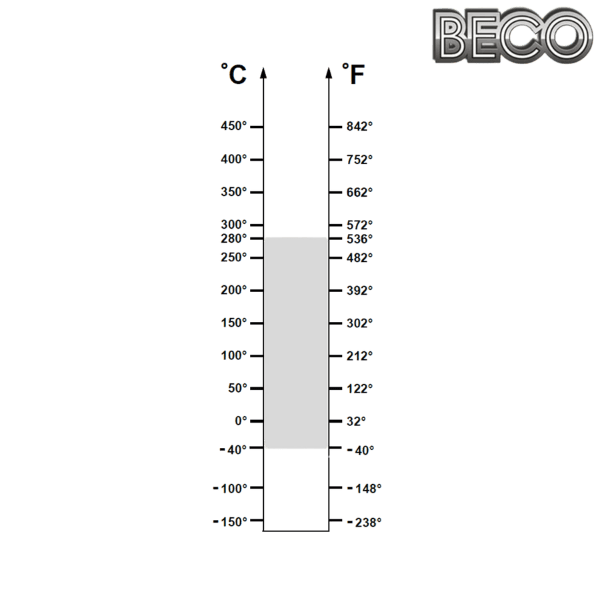

Operating Range - ‒40° / 280°C
Economic Operating Range - 200° / 280°C
NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result.
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
** Images are for representation purposes only
