Description
Brand - FAG
Item Number - 61815-2RSR-Y FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 75
Outer Diameter (D) mm - 95
Width (B) mm - 10
Basic Dynamic Load Rating (Cr) N - 13700
Basic Static Load Rating (C0r) N - 13400
Fatigue Limit Load (Cur) N - 890
Limiting Speed (nG) min–1 - 3300
Calculation Factor (f0) - 16.1
Weight (m) kg - 0.15
Minimum Chamfer Dimension (r min) mm - 0.6
Caliber Diameter Outer Ring (D2) mm - 90.5
Shoulder Diameter Inner Ring (d1) mm - 81.6
Minimum Diameter Shaft Shoulder (da) mm - 78.2
Maximum Diameter of Housing Shoulder (Da) mm - 91.8
Maximum Fillet Radius (ra) mm - 0.6
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
Y - Sheet Brass Cage
2RSR - Contact Seal on Both Sides (Lip Seal)

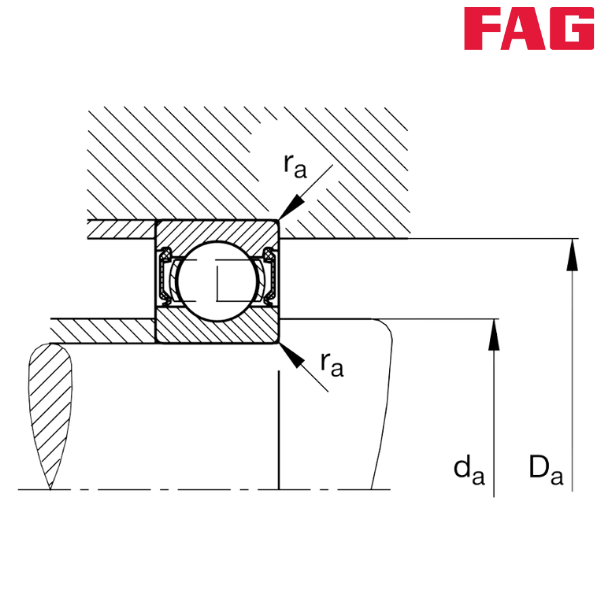

** Images are for representation purposes only
