Description
Brand - FAG
Item Number - 61814-2RZ-Y FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 70
Outer Diameter (D) mm - 90
Width (B) mm - 10
Basic Dynamic Load Rating (Cr) N - 13200
Basic Static Load Rating (C0r) N - 12400
Fatigue Limit Load (Cur) N - 820
Limiting Speed (nG) min–1 - 9000
Speed Rating (nϑr) min–1 - 5300
Calculation Factor (f0) - 16.1
Weight (m) kg - 0.14
Minimum Chamfer Dimension (r min) mm - 0.6
Caliber Diameter Outer Ring (D2) mm - 85.5
Shoulder Diameter Inner Ring (d1) mm - 76.6

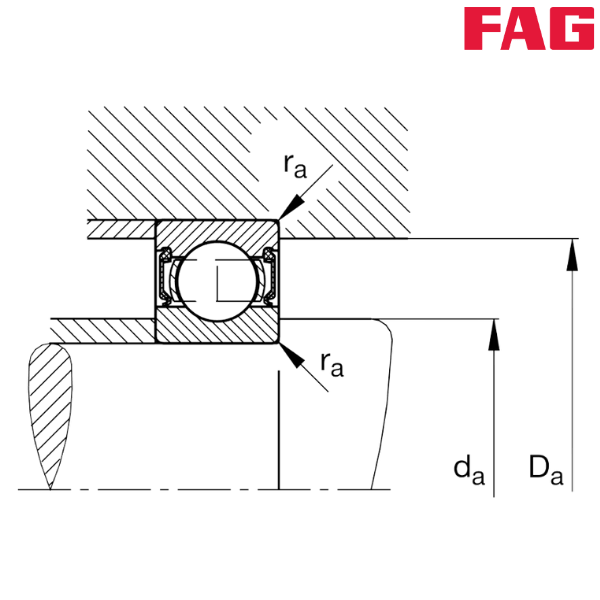

Minimum Diameter Shaft Shoulder (da) mm - 73.2
Maximum Diameter of Housing Shoulder (Da) mm - 86.8
Maximum Fillet Radius (ra) mm - 0.6
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
Y - Sheet Brass Cage
2RZ - Non-Contact Seal on Both Sides (Rubberised Gap Seal)
