Description
Brand - FAG
Item Number - 61813-2RSR-Y FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 65
Outer Diameter (D) mm - 85
Width (B) mm - 10
Basic Dynamic Load Rating (Cr) N - 13000
Basic Static Load Rating (C0r) N - 12000
Fatigue Limit Load (Cur) N - 780
Limiting Speed (nG) min–1 - 3750
Calculation Factor (f0) - 16.2
Weight (m) kg - 0.13
Minimum Chamfer Dimension (r min) mm - 0.6
Caliber Diameter Outer Ring (D2) mm - 80.5
Shoulder Diameter Inner Ring (d1) mm - 71.6

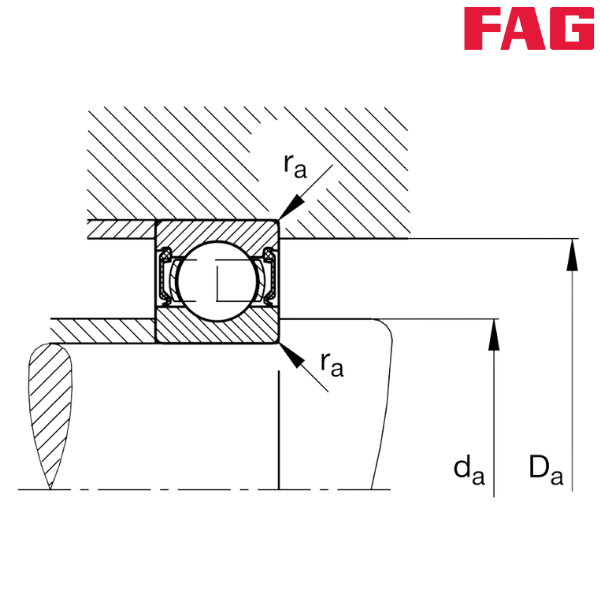

Minimum Diameter Shaft Shoulder (da) mm - 68.2
Maximum Diameter of Housing Shoulder (Da) mm - 81.8
Maximum Fillet Radius (ra) mm - 0.6
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
Y - Sheet Brass Cage
2RSR - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
