Description
Brand - NILOS
Item Number - 61806 AV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 30 mm
Outer Diameter (a) - 39.6 mm
Dimension (C) - 34 mm
Widtth (h) - 2 mm
Material Thickness (s) - 0.3 mm

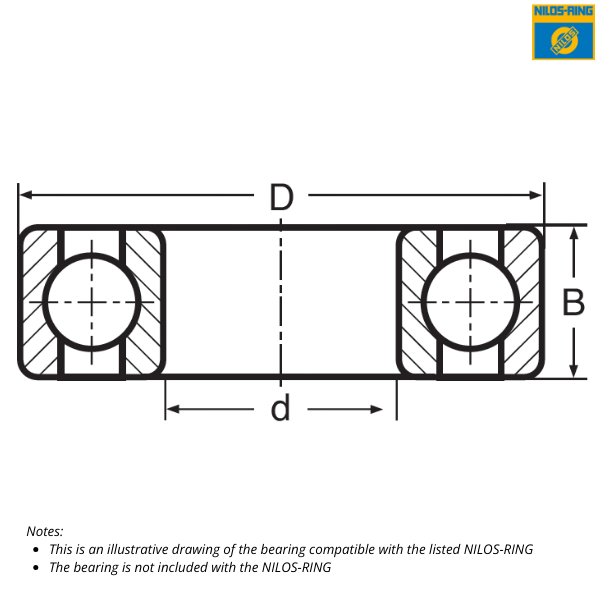

Description of Compatible Bearing (618 Series) :
Bearing Part Number - 61806
Bearing Type - Single Row Deep Groove Ball Bearing
Inner Diameter (d) - 30 mm
Outer Diameter (D) - 42 mm
Width (B) - 7 mm
♦♦ Images are for representation purposes only
