Description
Brand - FAG
Item Number - 61805-2RSR FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 25
Outer Diameter (D) mm - 37
Width (B) mm - 7
Basic Dynamic Load Rating (Cr) N - 4300
Basic Static Load Rating (C0r) N - 2940
Fatigue Limit Load (Cur) N - 132
Limiting Speed (nG) min–1 - 9500
Calculation Factor (f0) - 16
Weight (m) kg - 0.021
Minimum Chamfer Dimension (r min) mm - 0.3
Caliber Diameter Outer Ring (D2) mm - 34.2
Shoulder Diameter Inner Ring (d1) mm - 28.2

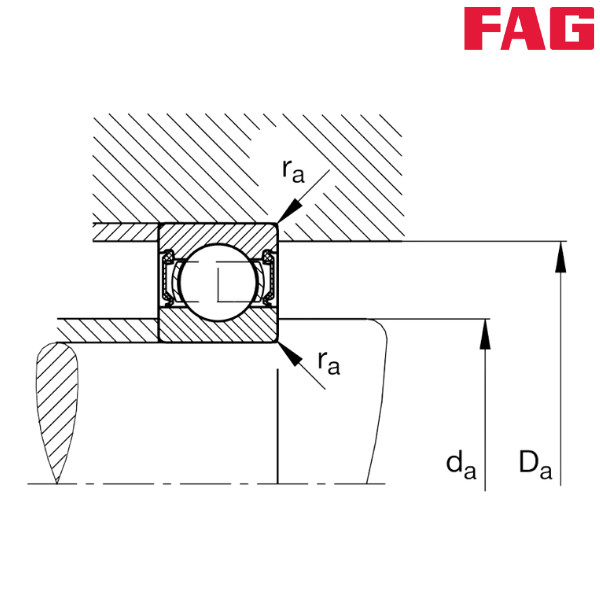

Minimum Diameter Shaft Shoulder (da) mm - 27
Maximum Diameter of Housing Shoulder (Da) mm - 35
Maximum Fillet Radius (ra) mm - 0.3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
