Description
Brand - NILOS
Item Number - 61802 AV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 15 mm
Outer Diameter (a) - 22.4 mm
Dimension (C) - 18 mm
Widtth (h) - 1.8 mm
Material Thickness (s) - 0.3 mm

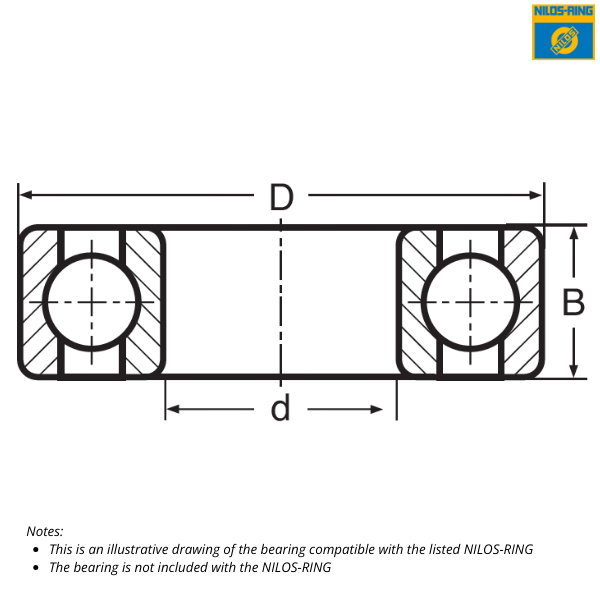

Description of Compatible Bearing (618 Series) :
Bearing Part Number - 61802
Bearing Type - Single Row Deep Groove Ball Bearing
Inner Diameter (d) - 15 mm
Outer Diameter (D) - 24 mm
Width (B) - 5 mm
♦♦ Images are for representation purposes only
