Description
Brand - ZEN
Item Number - 61800-Z.T9H.C3 ZEN

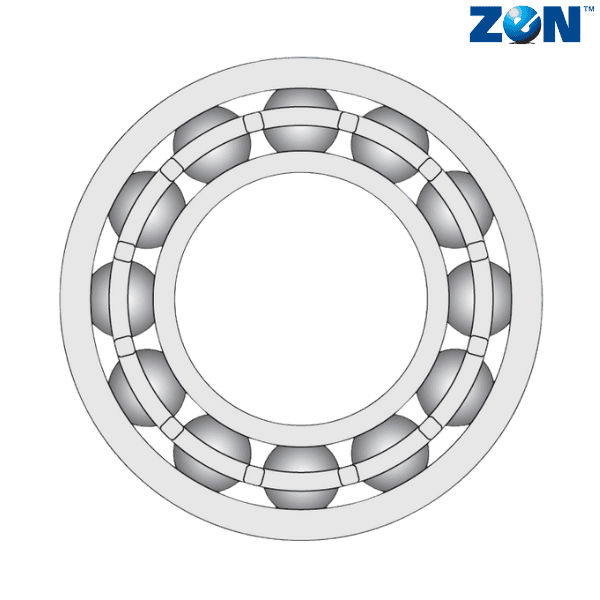

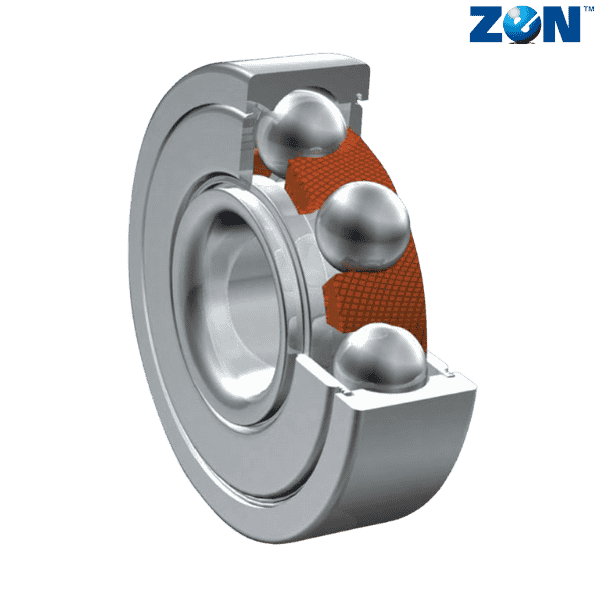

Category - Radial Ball Bearing with Plastic Cage

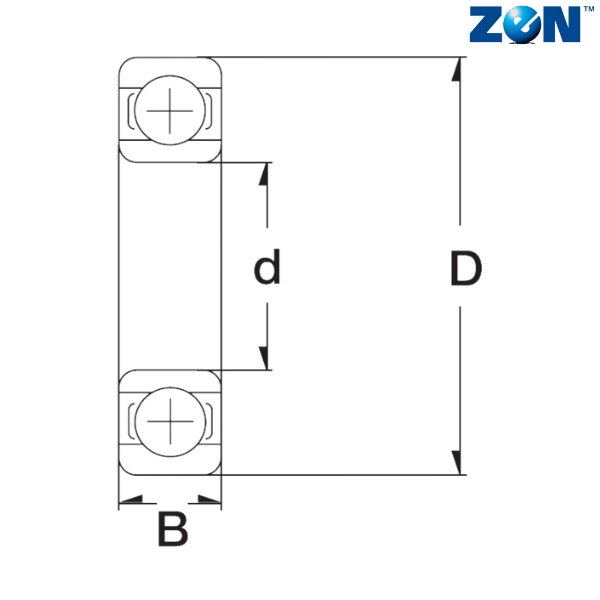

Inner Ring Dimension (d) mm - 10
Outer Ring Dimension (D) mm - 19
Width (B) mm - 5
Dynamic Load Rating (N) - 1720
Static Load Rating (N) - 840
Limiting Speed - 34
Weight (kg) - 0.006
Radial Play - 0.008 - 0.023
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
Z - Metal Shield
T9H - Glass Fibre Reinforced Cage
** Images are for representation purposes only
