Description
Brand - FAG
Item Number - 60992-M FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter(d) mm - 460
Outer Diameter(D) mm - 620
Weight (Kg) - 46.2
Inner Width(B) mm - 50

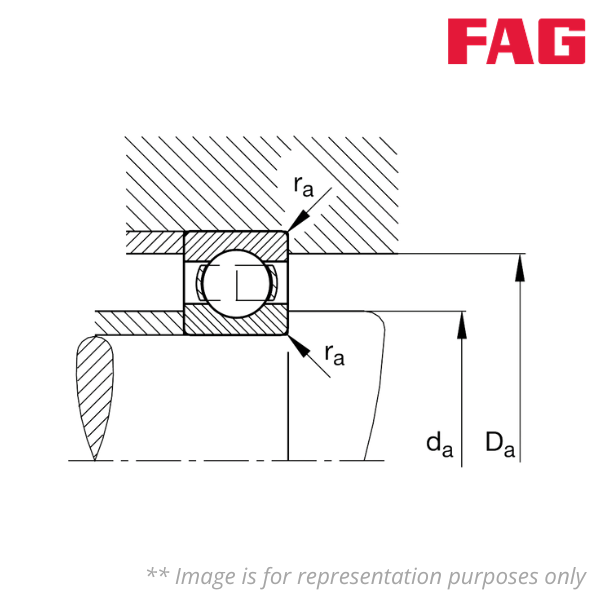

Minimum Chamfer Dimension(r) mm - 4
Shoulder diameter outer ring(D1) mm - 561
Shoulder diameter inner ring(d1) mm - 520
Minimum diameter shaft shoulder(da) mm - 474.6
Maximum diameter of housing shoulder(Da) mm - 605.4
Maximum fillet radius(ra) mm - 3
Basic Dynamic load rating(Cr) kN - 305
Basic Static load rating(C0r) kN - 520
Fatigue limit load current(Cur) kN - 13.3
Calculation factor(f0) - 16
Limiting speed (RPM) - 2200
Reference speed (RPM) - 1000
