Description
Brand - FAG
Item Number - 60892-M FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter(d) mm - 460
Outer Diameter(D) mm - 580
Weight (Kg) - 26
Inner Width(B) mm - 37
Minimum Chamfer Dimension(r) mm - 2.1
Shoulder diameter outer ring(D1) mm - 535.6
Shoulder diameter inner ring(d1) mm - 504.4

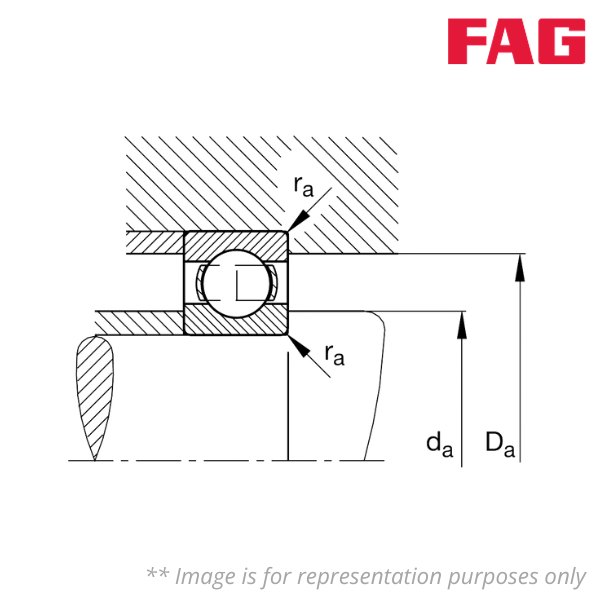

Minimum diameter shaft shoulder(da) mm - 470.2
Maximum diameter of housing shoulder(Da) mm - 569.8
Maximum fillet radius(ra) mm - 2.1
Basic Dynamic load rating(Cr) kN - 228
Basic Static load rating(C0r) kN - 375
Fatigue limit load current(Cur) kN - 10.2
Calculation factor(f0) - 15.7
Limiting speed (RPM) - 2400
Reference speed (RPM) - 950
