Description
Brand - FAG
Item Number - 608/1400-M FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter(d) mm - 1400
Outer Diameter(D) mm - 1700
Weight (Kg) - 472
Inner Width(B) mm - 95
Minimum Chamfer Dimension(r) mm - 6

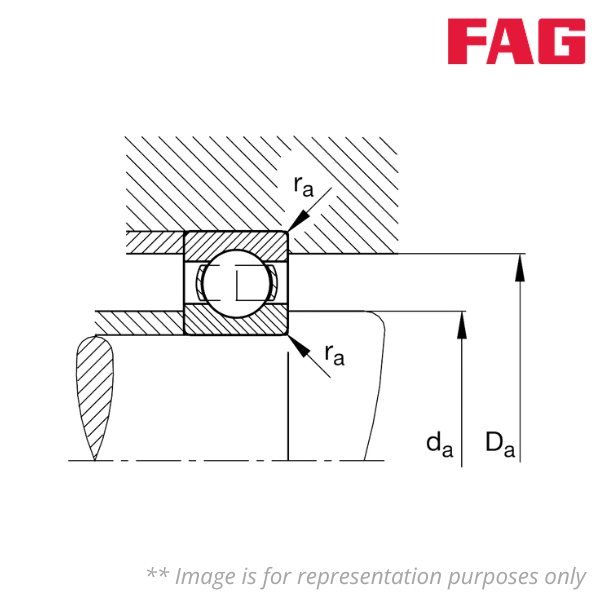

Shoulder diameter outer ring(D1) mm - 1591.5
Shoulder diameter inner ring(d1) mm - 1511
Minimum diameter shaft shoulder(da) mm - 1423
Maximum diameter of housing shoulder(Da) mm - 1677
Maximum fillet radius(ra) mm - 5
Basic Dynamic load rating(Cr) kN - 900
Basic Static load rating(C0r) kN - 2800
Fatigue limit load current(Cur) kN - 43
Calculation factor(f0) - 15.5
Limiting speed (RPM) - 700
Reference speed (RPM) - 280
