Description
Brand - SKF
Item Number - 6052 M/C4S0VG2211 SKF

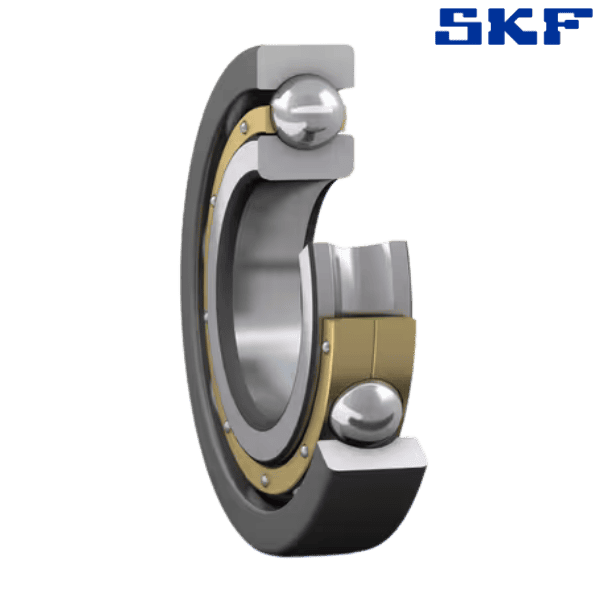

Category - Traction Motor, INSOCOAT Deep Groove Ball Bearings

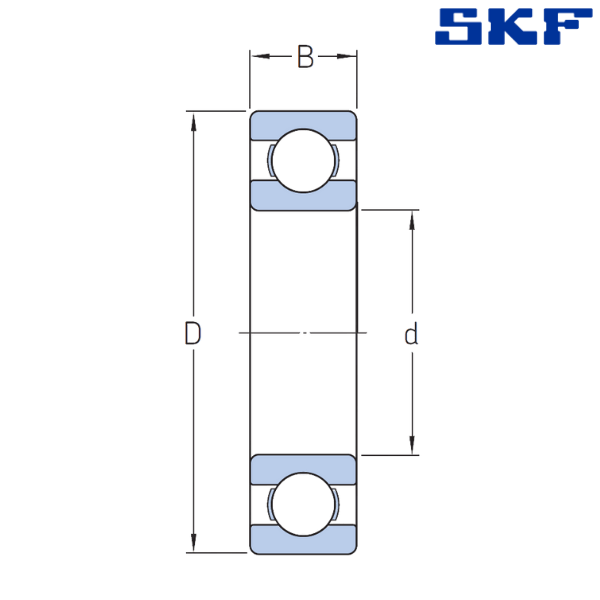

Bore Diameter (d) mm - 260
Outer Diameter (D) mm - 400
Width (B) mm - 65
Dynamic Load Rating (C) kN - 291
Static Load Rating (C0) kN - 375
Limiting Speed (r/min) - 2800
Weight (Kg) - 30.02
Designation Prefixes and Suffixes:
M - Machined Brass Cage, Rolling Element Centred
C4 - Bearing Internal Clearance Greater Than C3
VG - This Suffix is Followed By Three or Four Digit Numbers Refer to Special Executions.
** Images are for representation purposes only
