Description
Brand - FAG
Item Number - 6040-M FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 200
Outer Diameter (D) mm - 310
Width (B) mm - 51
Basic Dynamic Load Rating (Cr) N - 231000
Basic Static Load Rating (C0r) N - 243000
Fatigue Limit Load (Cur) N - 9900
Limiting Speed (nG) min–1 - 3650
Speed Rating (nϑr) min–1 - 3000
Calculation Factor (f0) - 15.6
Weight (m) kg - 14.4
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 276.25
Shoulder Diameter Inner Ring (d1) mm - 234.84

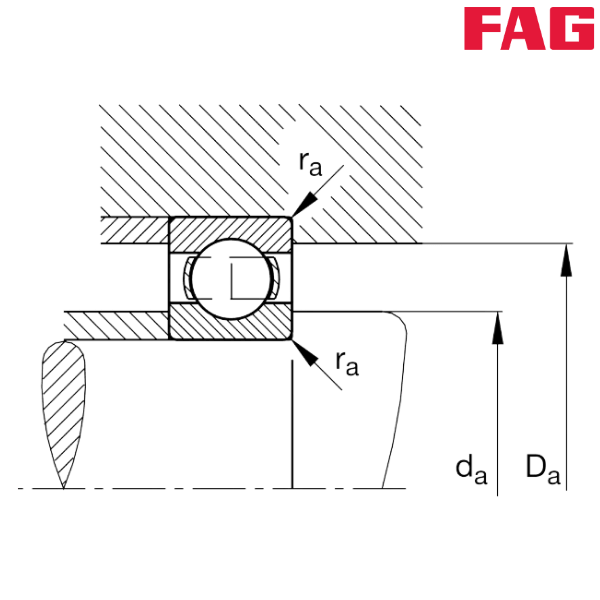

Minimum Diameter Shaft Shoulder (da) mm - 210.2
Maximum Diameter of Housing Shoulder (Da) mm - 299.8
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
M - Solid Brass Cage, Ball-Guided
** Images are for representation purposes only
