6038-M FAG


Download Datasheet
Country Of Origin: EU
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Description

Brand - FAG
Item Number - 6038-M FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 190
Outer Diameter (D) mm - 290
Width (B) mm - 46
Basic Dynamic Load Rating (Cr) N - 216000
Basic Static Load Rating (C0r) N - 220000
Fatigue Limit Load (Cur) N - 9400
Limiting Speed (nG) min–1 - 3850
Speed Rating (nϑr) min–1 - 3100
Calculation Factor (f0) - 15.6
Weight (m) kg - 11.3
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 260.25
Shoulder Diameter Inner Ring (d1) mm - 220.82

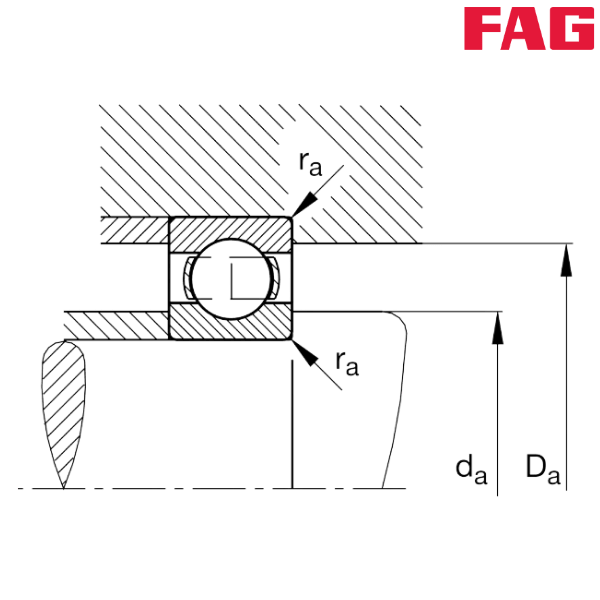

Minimum Diameter Shaft Shoulder (da) mm - 200.2
Maximum Diameter of Housing Shoulder (Da) mm - 279.8
Maximum Fillet Radius (ra) mm - 2.1

Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
M - Solid Brass Cage, Ball-Guided

** Images are for representation purposes only
